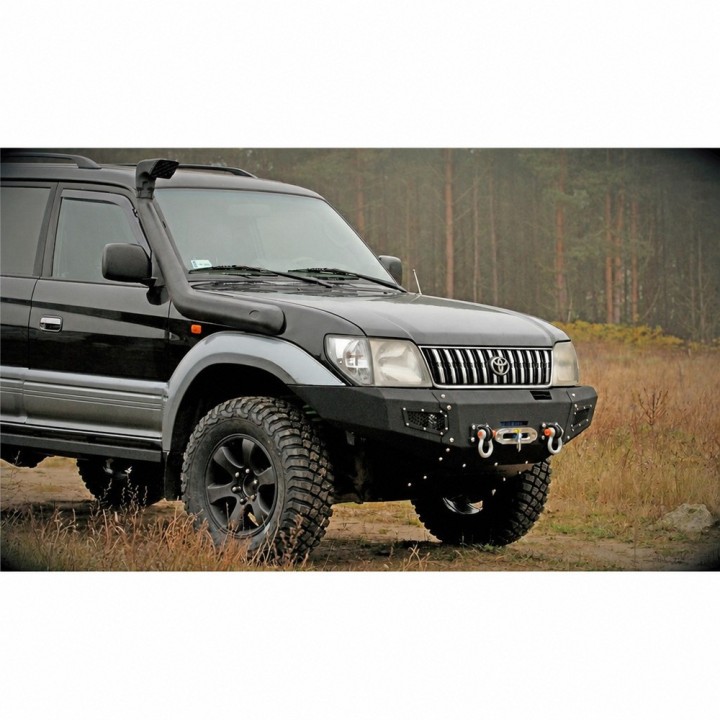

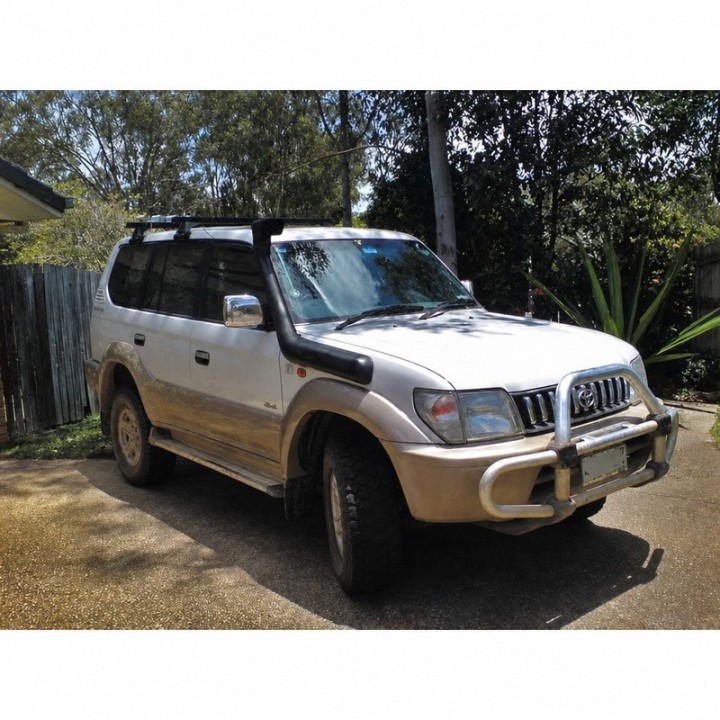

A snorkel moves the air intake from the engine bay up to roof level. You get two things: no risk of drawing water in when crossing a ford, and cleaner air on a dusty track, because there is simply less dust at pillar height.

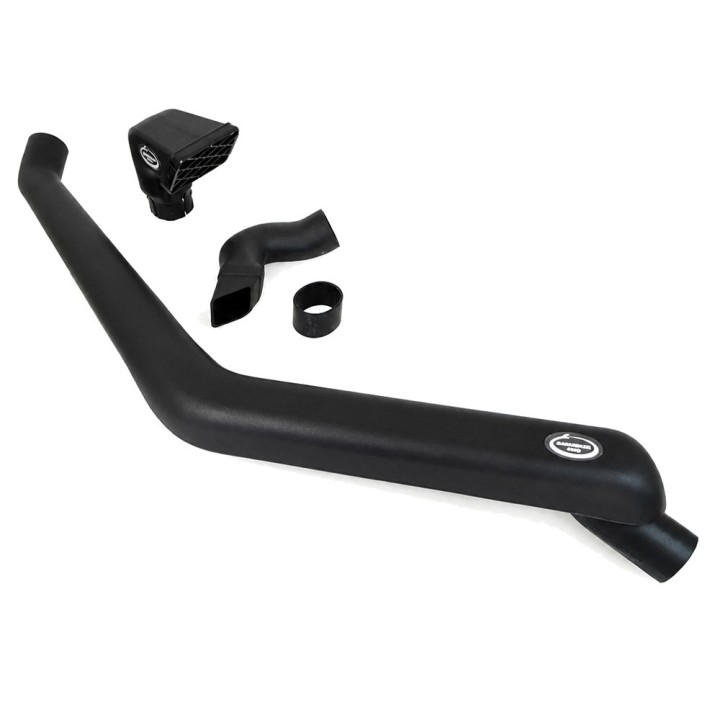

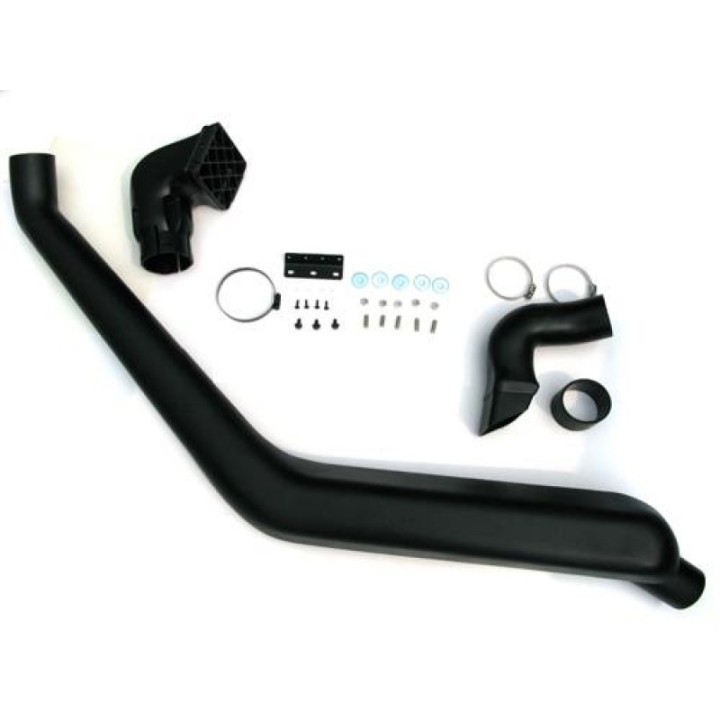

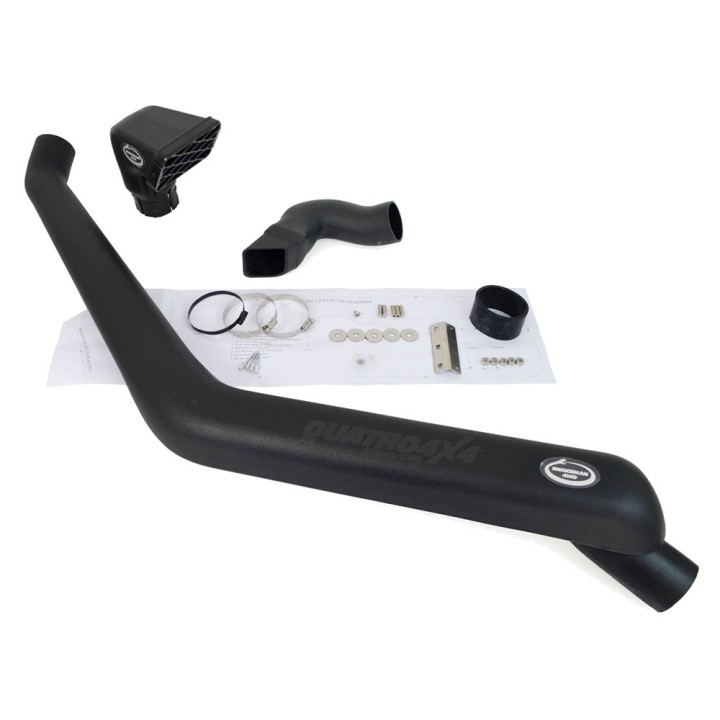

Made of LLDPE — a plastic that deforms instead of cracking when a branch hits it. Supplied ready to fit. A cutting template for the fender is included. Engine version: 3.4L V6 5VZ-FE).
| Material LLDPE | Tube diameter 77 mm | Included cutting template |
| Part number | SNS090 |
| Manufacturer | Snakeman 4WD |
| Material | LLDPE |
| Engines | 3.4L V6 5VZ-FE) |
| Air ram diameter (inner) | 73 mm |
| Tube diameter (outer) | 77 mm |
| Template included | yes |
| EAN | 5905247910905 |
Fitting requires cutting a hole in the fender using the supplied template. That step cannot be undone — if you are not confident, have it done in our workshop in Warsaw.
After fitting, check the whole intake for leaks — a snorkel only makes sense if there are no leaks downstream of it.
Does this mean I can drive through any water?
No. A snorkel protects the intake, but the axles, gearbox, alternator and electrics are still in the water. Wading depth is set by the vehicle manufacturer, not by the snorkel.
Does it affect roadworthiness?
It is an external, permanently mounted part — at a technical inspection it is assessed case by case.
Snakeman 4WD is a range picked for European conditions and European prices. We fit everything we sell in our own workshop in Warsaw, so if you are not sure which version suits your car, write to us — we will work it out with you.
