IRONMAN 4x4
Indeks: SUZ019C
Coil springs

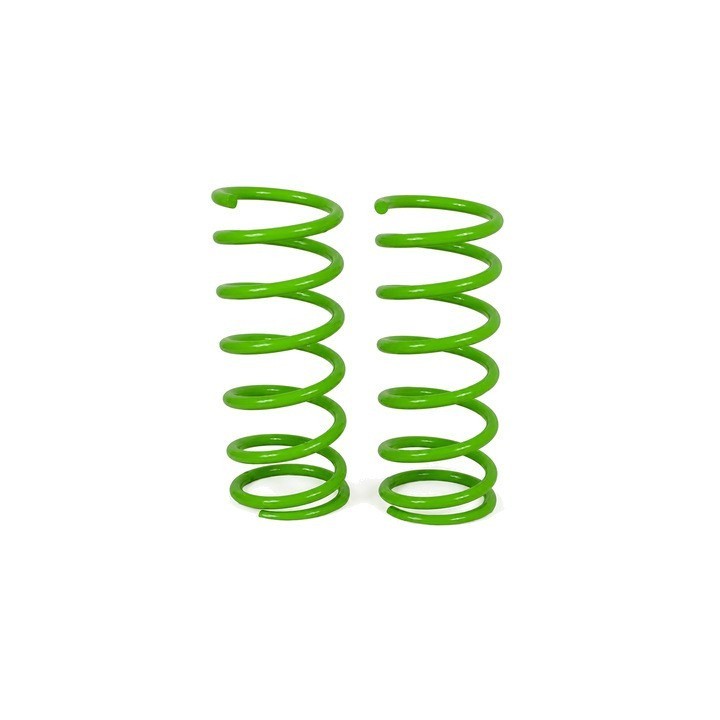

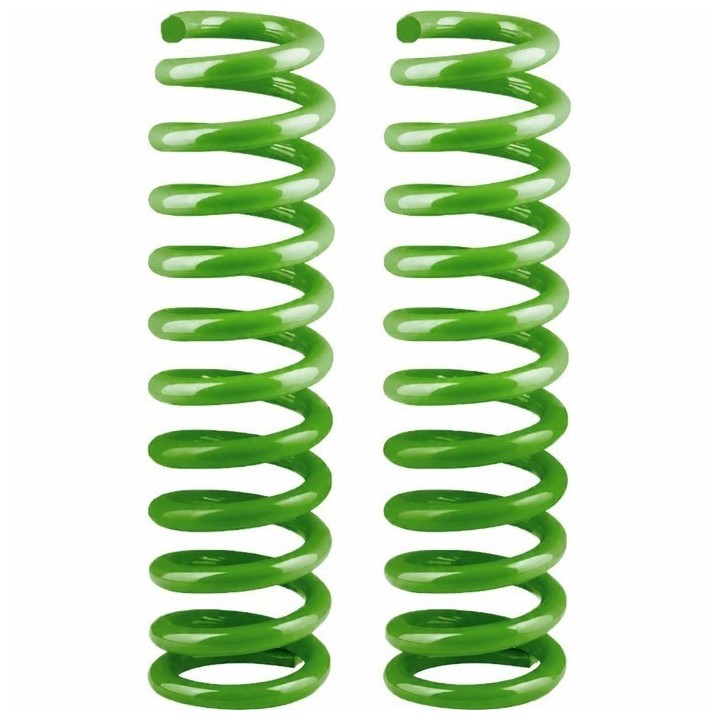

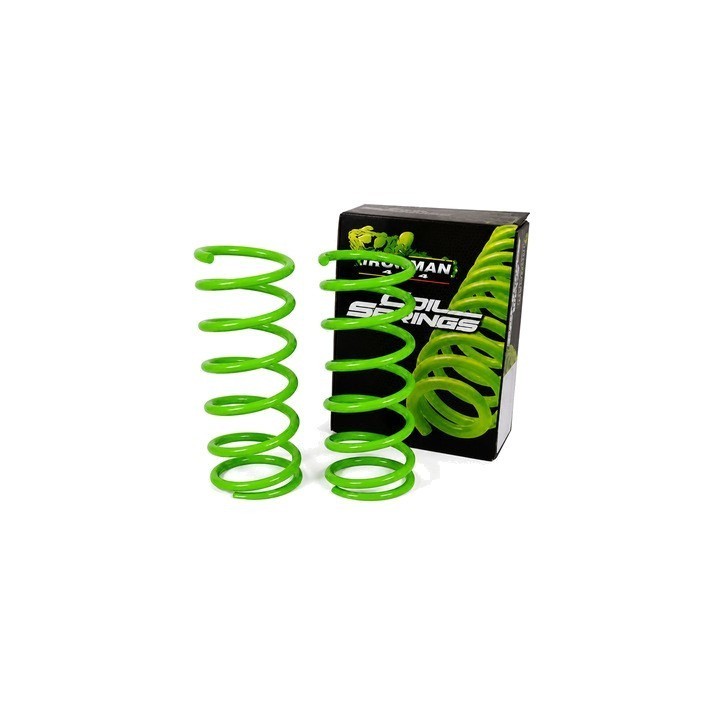

Front coil springs Ironman 4x4 Heavy Duty — Suzuki Grand Vitara diesel (SUZ019C)
Front coil springs Ironman 4x4 Heavy Duty — Suzuki Grand Vitara diesel (SUZ019C)
A tired spring means a sagging rear end, worse geometry and shock absorbers that wear out faster. This part is made for specific models rather than sold as a universal fit.
Dimensions: wire 16 mm, coil diameter 125 mm, free height 395 mm.
| Position front | Sold as pair (axle set) | Load Heavy Duty |
Key features
- Wire diameter 16 mm.
- Coil diameter 125 mm.
- Free height 395 mm.
- Sold as a pair — one axle set.
Vehicle fitment
- Suzuki Grand Vitara (diesel, petrol V6) from 2005 (additional load +50 kg)
Technical data
| Part number | SUZ019C |
| Manufacturer | Ironman 4x4 |
| Position on the car | front |
| Wire diameter | 16 mm |
| Coil diameter | 125 mm |
| Free height | 395 mm |
| Rating | Heavy Duty |
| Sold as | pair (axle set) |
| EAN | 9326626007973 |
Fitting and notes
Springs are replaced in pairs on an axle — otherwise the car sits unevenly. When you change ride height, check the shock absorbers at the same time: factory shocks on a lifted car work on the wrong part of their travel and wear out quickly.
We do the fitting and pick the whole kit in our workshop in Warsaw. After a lift, a wheel alignment check is recommended.
Frequently asked questions
How many do I need?
This is one axle set — lifting the whole car needs a set for the other axle as well.
Why buy it here

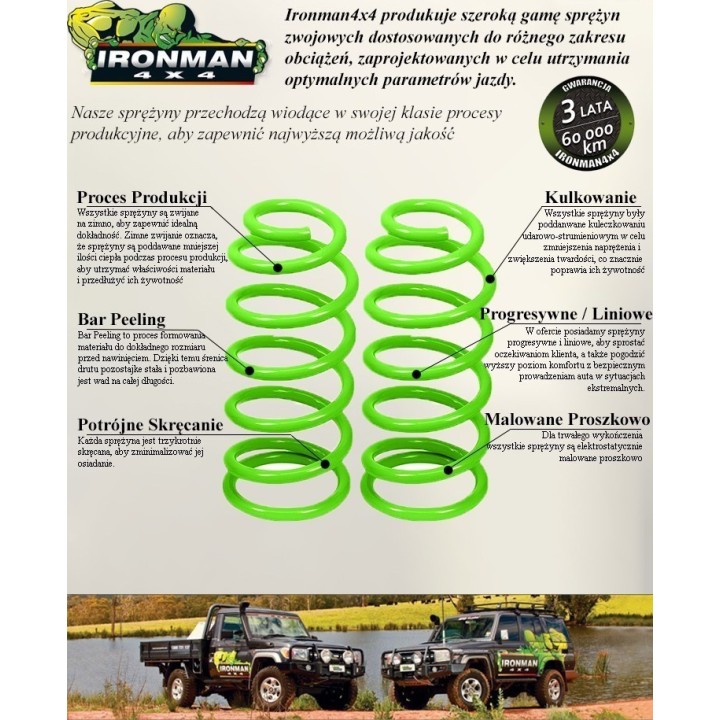

Ironman 4x4 is an Australian brand built for vehicles that really work off-road and carry weight. We fit everything we sell in our own workshop in Warsaw, so if you are not sure which version suits your car, write to us — we will work it out with you.
