The HELLA BLACK MAGIC LED CUBE 3.2" spot kit (1FA 358 176-821) is a compact auxiliary lighting set designed to deliver long-range illumination with a clean, full-blackout appearance. Each lamp uses 4 LEDs to produce 3000 lm (effective) at 5700K, helping you see further ahead while keeping the beam controlled. The edgeless housing design helps reduce dust and rain build-up, and the dedicated reflector supports more uniform light distribution with reduced glare.

Key features

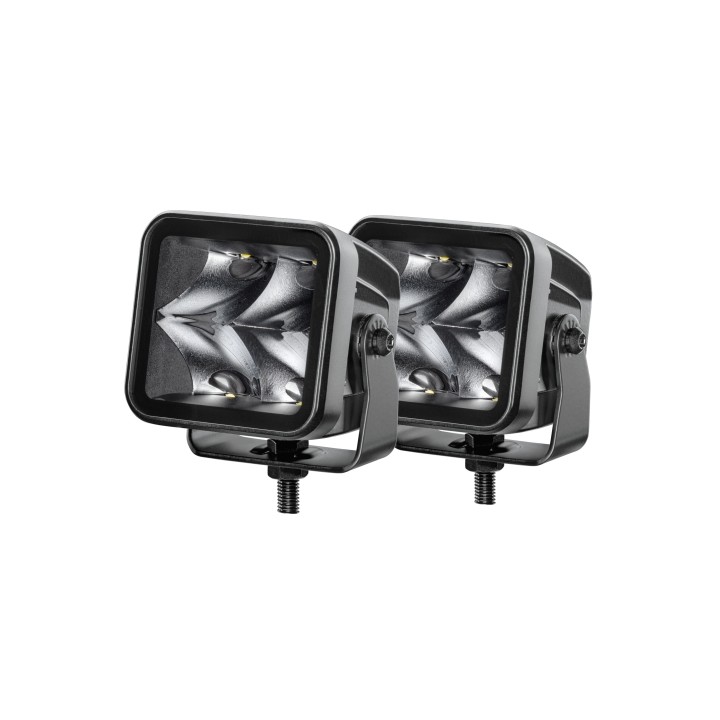

• Complete kit: 2x LED Cube 3.2" spot lamps plus relay, switch, wiring and instructions.
• Long-range (spot) beam pattern for focused distance lighting.
• 3000 lm effective output per lamp and 5700K colour temperature.
• Rugged build: aluminium housing with black stainless-steel bracket.
• High sealing level: IP68 and IP69K.
• EMC protection: ECE-R10.
• Edgeless design to help limit dust/rain build-up on the lamp.
• DT plug connection for a practical, service-friendly installation.

Technical data

• Part number: 1FA 358 176-821
• Series: BLACK MAGIC LED CUBE
• Size: 3.2"
• Light source: LED
• Number of LEDs: 4
• Light function: long-range (spot)
• Effective luminous flux: 3000 lm
• Colour temperature: 5700 K
• Operating voltage: 10–30 V
• Current draw: 3.4 A (12 V) / 1.6 A (24 V)
• Power consumption: 40 W
• Protection rating: IP68, IP69K
• EMC protection: ECE-R10
• Materials: aluminium housing, black stainless-steel bracket
• Weight (single lamp): 358 g
• Mounting: upright / pendant or flush mounting
• Connection: DT plug
• Cable: 500 mm with DT plug + short adapter harness

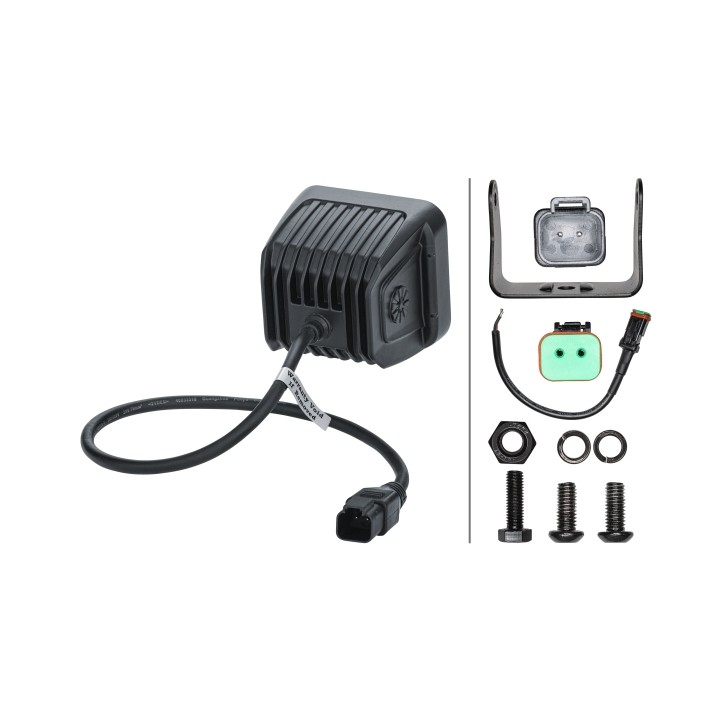

• Kit contents: 2x LED lamps, 1x relay, 1x switch + mounting instructions, 1x wiring harness with DT plug

Off-road and 4x4 use

This kit is a practical choice when you need a compact, durable long-range auxiliary light setup in harsh conditions. The spot beam helps project light further ahead, while the IP68/IP69K sealing supports use in mud, dust and heavy spray. Multiple mounting options (upright, pendant or flush) make it easier to integrate into different vehicle builds and accessory mounts.
