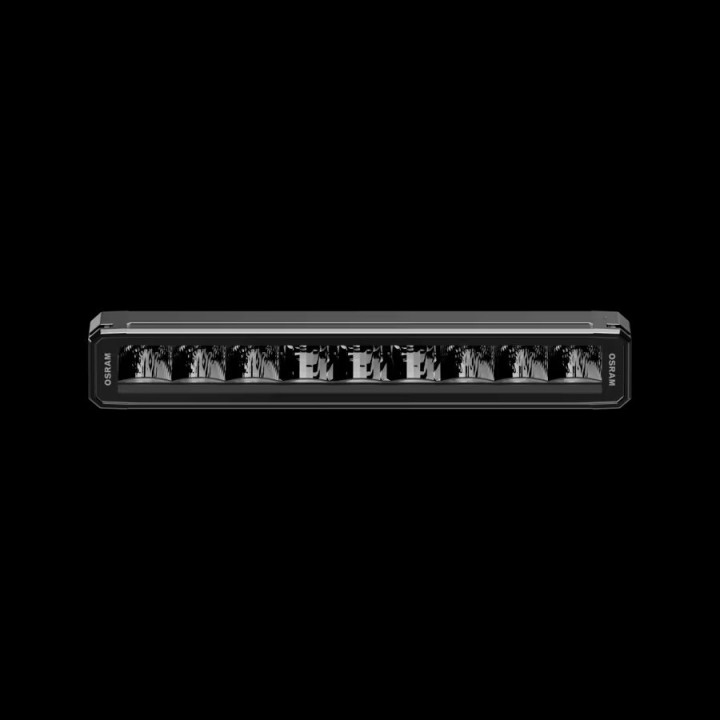

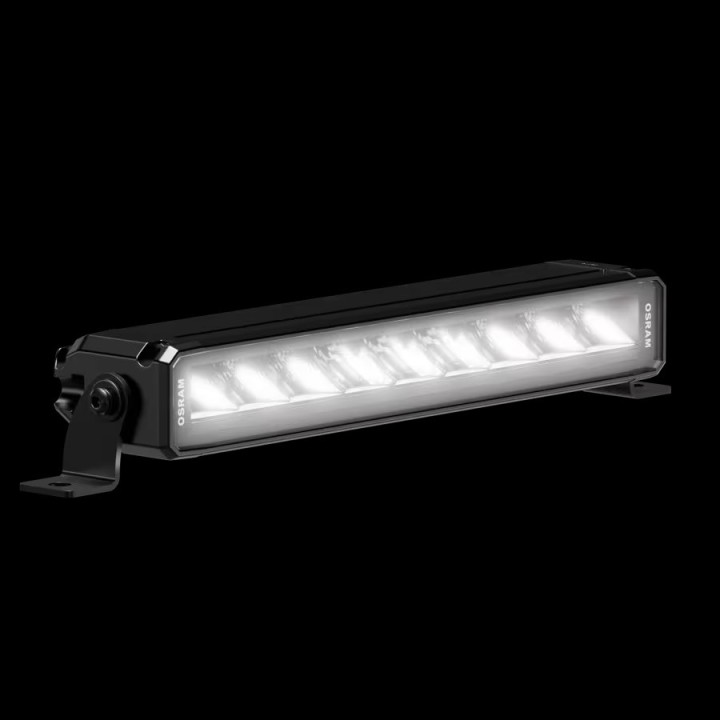

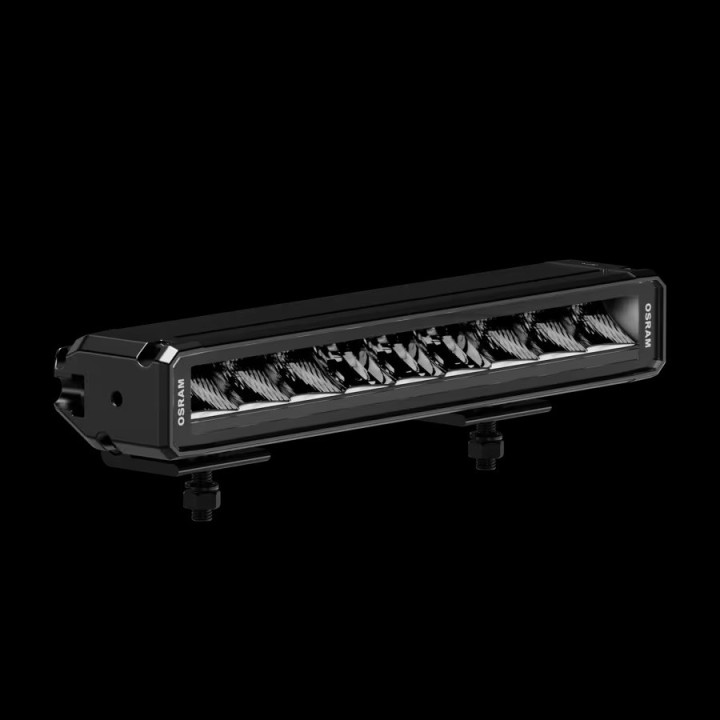

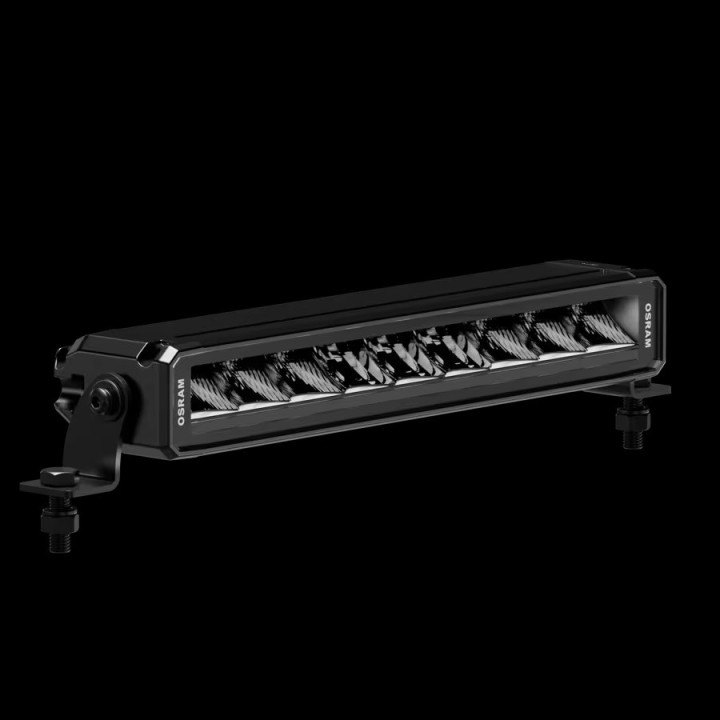

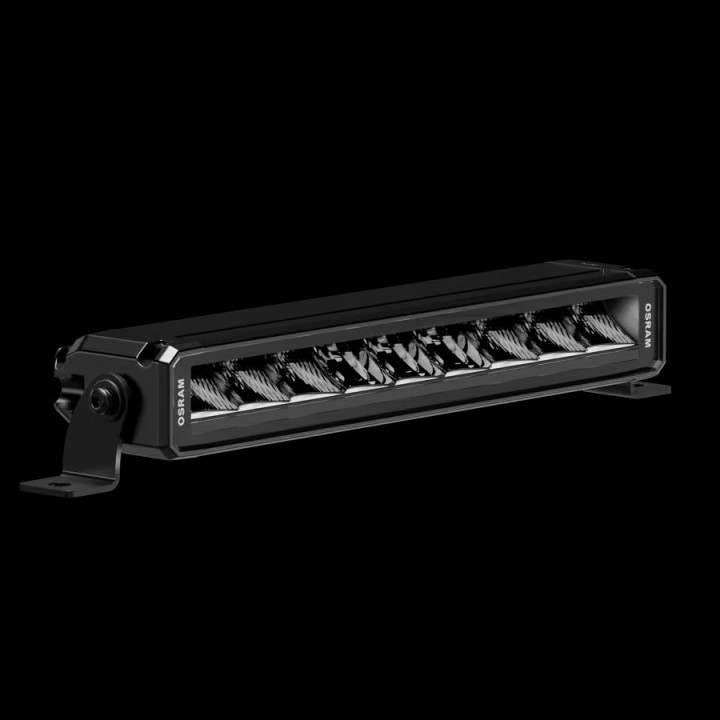

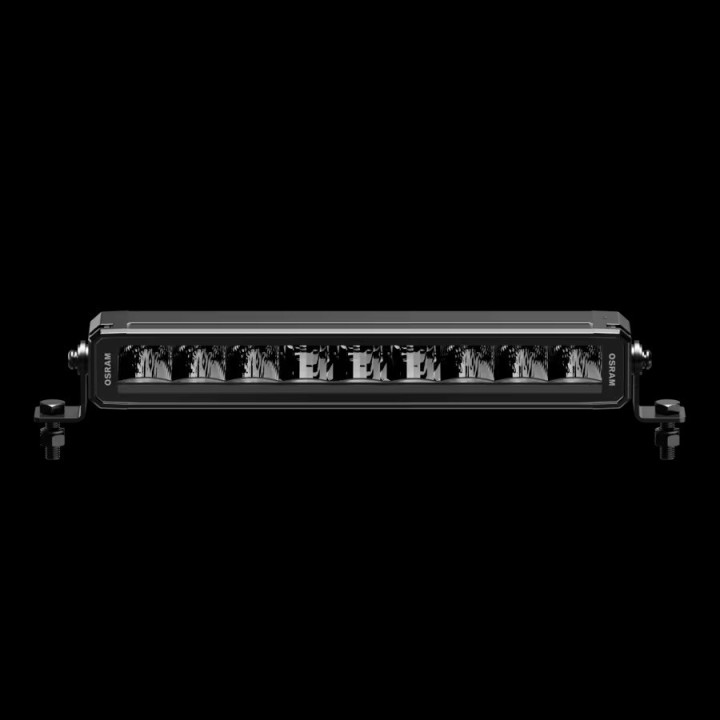

OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME
OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME is a compact 12/24 V LED light bar with a Combo beam, high-beam function, and white and amber position lights. In Boost mode, it delivers up to 4600 lm and a range of up to 330 m, while the IP6K8/IP6K9K-rated housing is designed for demanding road and off-road conditions.
OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME – 12/24 V LED light bar for cars and off-road vehicles
The OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME is a multifunctional LED light bar with a Combo beam pattern that combines close-range illumination with long-distance visibility. Its 4-in-1 design provides a high-beam function, white and amber position lights, and an additional Boost mode.
The light bar delivers up to 4600 lm and a range of up to 330 m in Boost mode. Its aluminium housing, impact-resistant polycarbonate lens, and IP6K8 and IP6K9K protection ratings make it suitable for 4x4 vehicles, trucks, agricultural machinery, utility and construction vehicles, motorhomes, and ATVs.
Beam pattern
Combo – close-range and long-distance illumination
Lighting functions

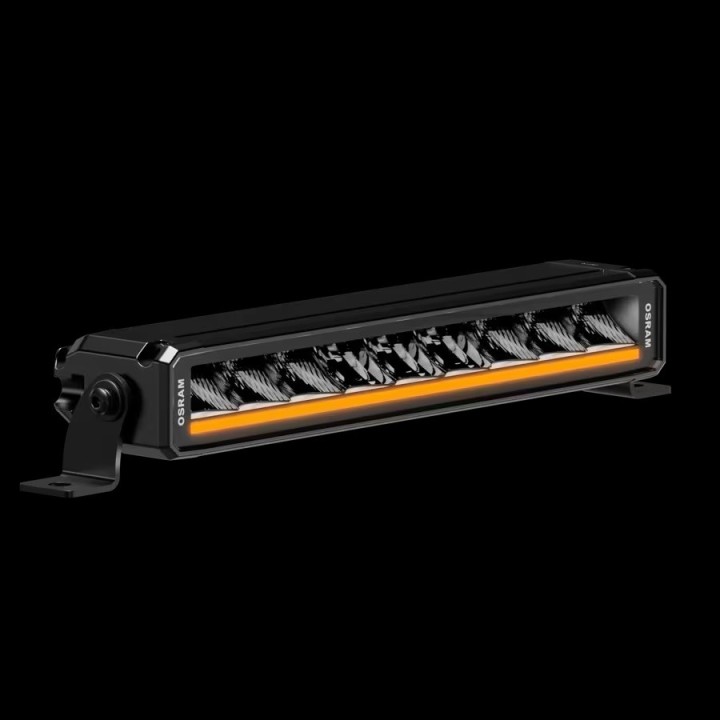

High beam, white position light, amber position light, and Boost mode
Power supply
12 V and 24 V electrical systems
Protection rating
IP6K8 and IP6K9K
Key benefits
- Four functions in one light bar – LED high beam, white and amber position lights, and Boost mode.
- Range of up to 330 m – Boost mode increases visibility when driving away from public roads.
- Combo beam pattern – illuminates both the area directly in front of the vehicle and the road further ahead.
- Dynamic welcome light – a smooth lighting animation activates when the light bar is switched on.

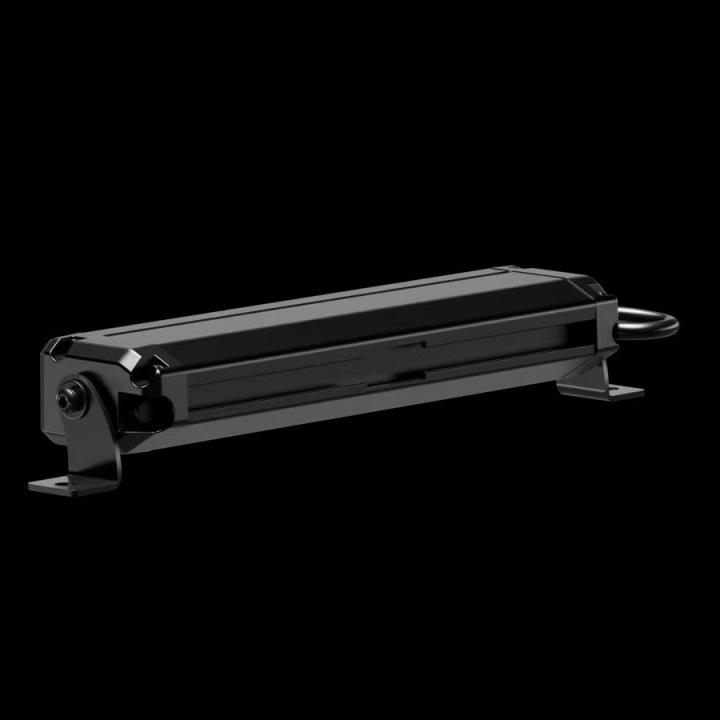

- Built for demanding conditions – die-cast aluminium housing and a shatter-resistant polycarbonate lens.
- High level of sealing – IP6K8 and IP6K9K ratings provide protection against dust, immersion, and high-pressure water.
- Universal 12/24 V compatibility – suitable for a wide range of vehicles and machinery.
- 5-year manufacturer warranty in accordance with the OSRAM warranty programme terms.
Multifunctional 4-in-1 lighting system
Range of up to 330 m in Boost mode
What is included

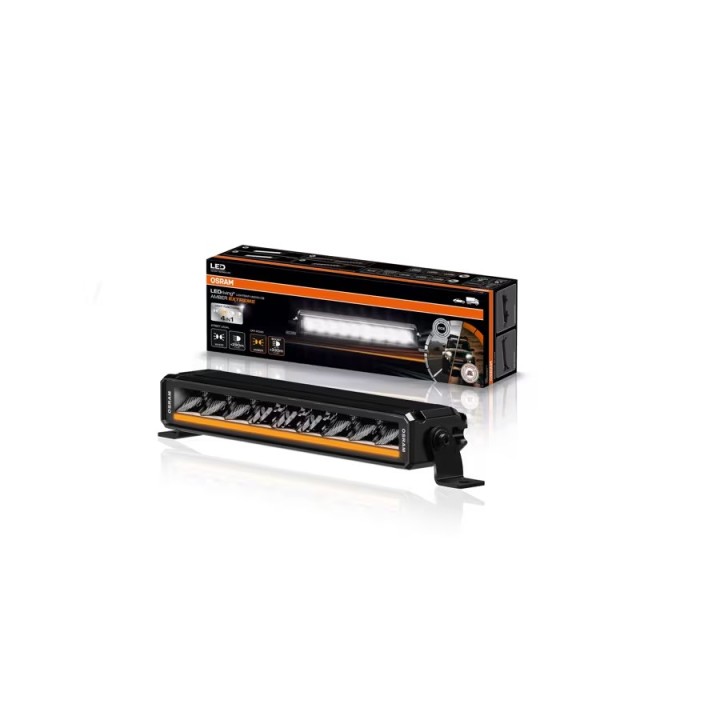

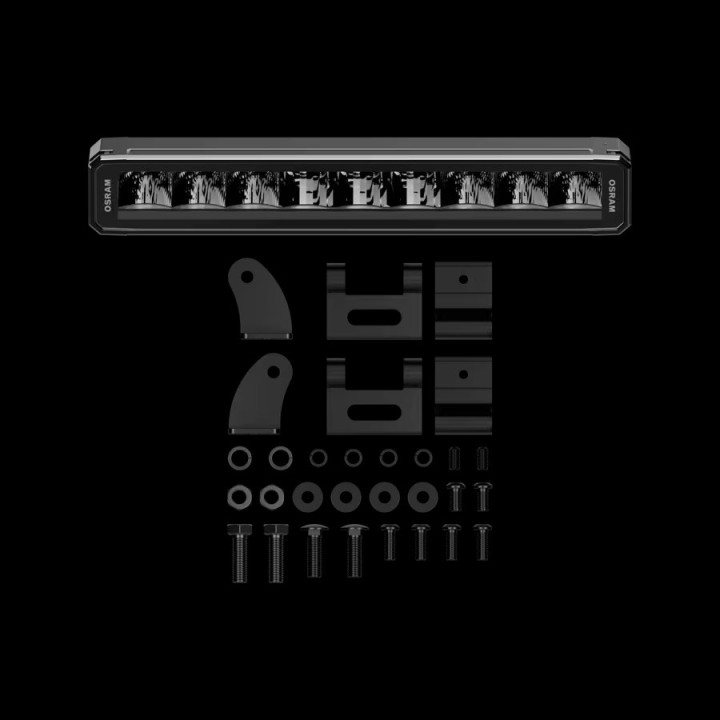

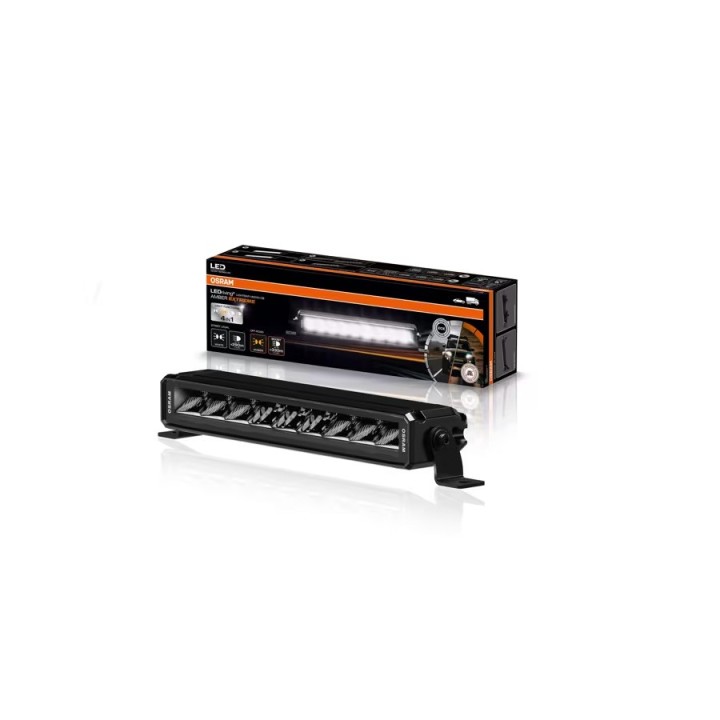

- 1 × OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME LED light bar.
Technical data / facts
- Product reference: LEDDL138-CB X
- Technology: LED
- Application: additional high beam and position light
- Beam pattern: Combo
- Nominal voltage: 12/24 V
- Nominal wattage: 50 W / 90 W / 2.5 W
- Test voltage: 13.5 V
- Luminous flux: 3600 lm – high beam / 4600 lm – Boost
- Range at 1 lx: 290 m – high beam / 330 m – Boost
- Colour temperature: 6000 K / 1700 K
- Number of LEDs: 18
- Dimensions: 283 × 63.5 × 43.5 mm
- Product weight: 1224 g

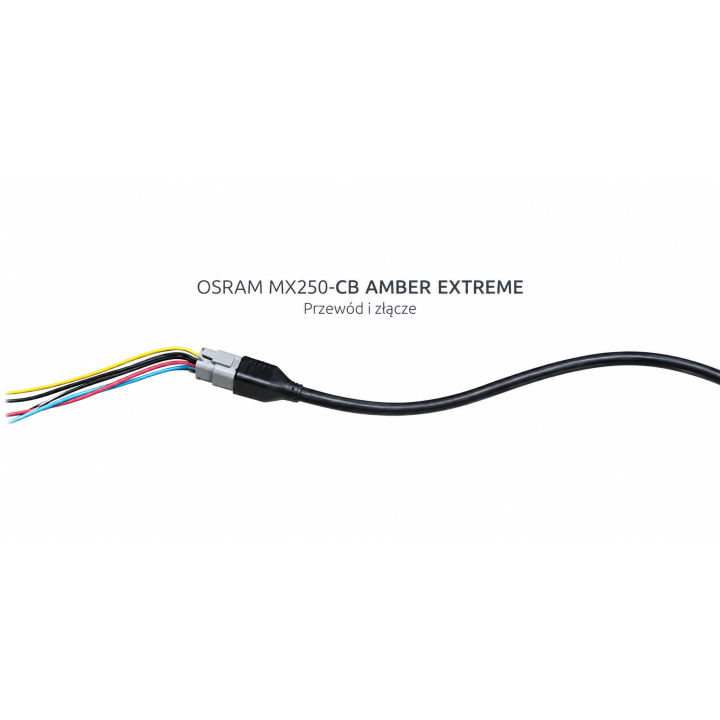

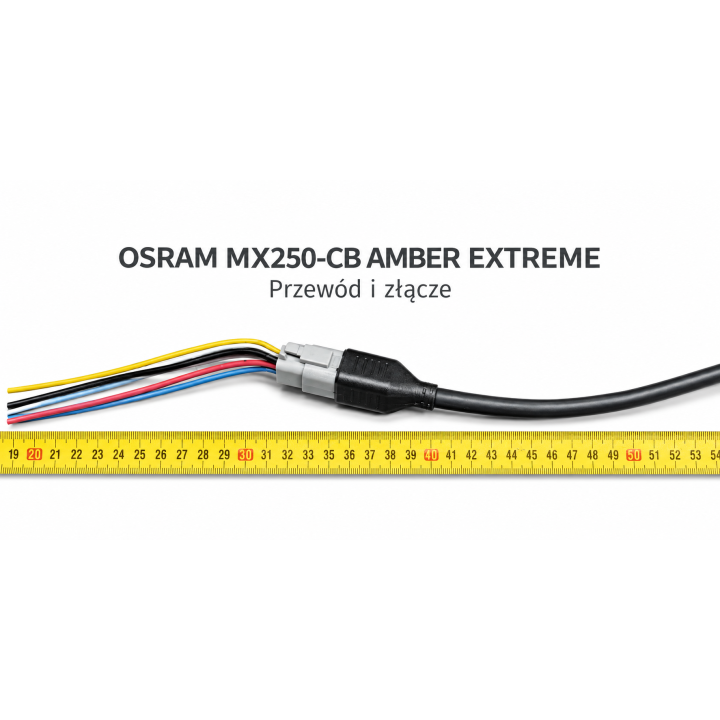

- Connector: DT Connector
- Tc service life: 5000 hours
- Protection rating: IP6K8, IP6K9K
- Standards: ECE R10, R148, R149
- Approval: E4
- ECE reference number: 20
- Warranty: 5 years
Combo beam characteristics
IP6K8 and IP6K9K protection
Recommended users / applications
- Passenger cars and off-road vehicles requiring additional high-beam lighting.
- 4x4 vehicles used for overlanding and off-road driving.
- Trucks and commercial vehicles.
- Agricultural and construction machinery.
- Motorhomes, caravans, and expedition vehicles.
- ATVs and other vehicles with 12 V or 24 V electrical systems.
Installation / notes
- The light bar is designed for 12 V and 24 V electrical systems.
- OSRAM LEDriving driving lights are approved in accordance with ECE regulations and may be used on public roads within the scope of their approved functions.
- Boost mode and the amber position light are not ECE-approved and must not be used on public roads.
- Before installation and use, check the regulations applicable in the country where the vehicle is operated.
Summary for quick scanning
- 4-in-1 LED light bar with white and amber position lights.
- Combo beam for close-range and long-distance illumination.
- Up to 4600 lm and a range of up to 330 m in Boost mode.
- 12/24 V compatibility and DT connector.
- Aluminium housing and polycarbonate lens.
- IP6K8 and IP6K9K protection ratings.
- ECE R10, R148, and R149 approvals.
- 5-year manufacturer warranty.
