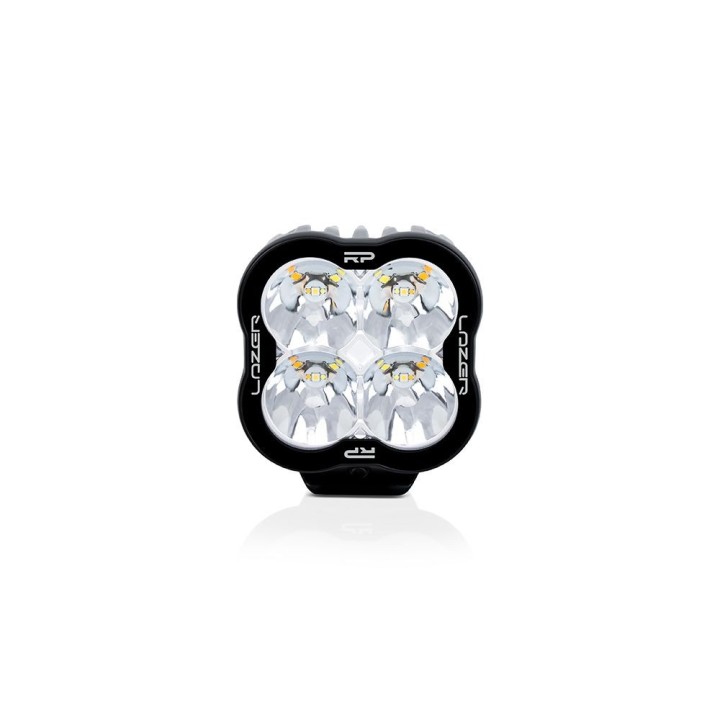

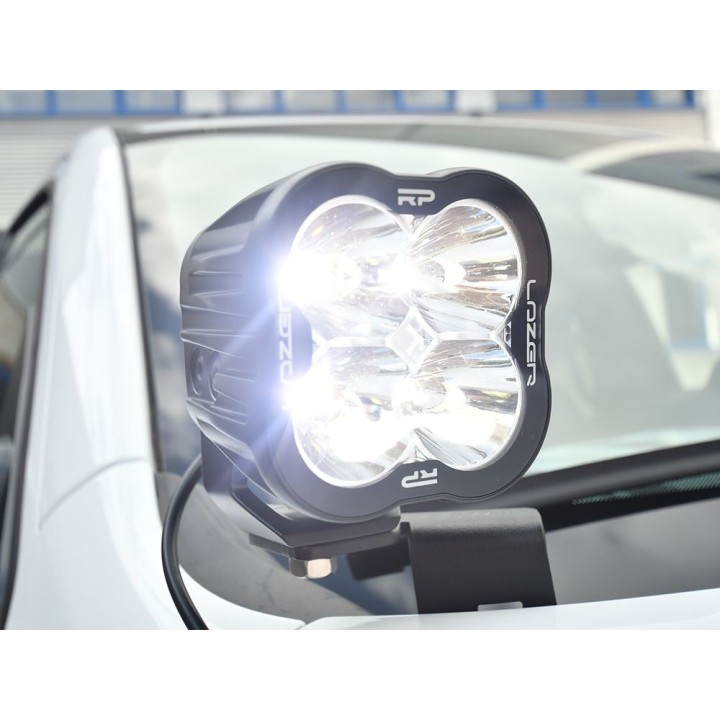

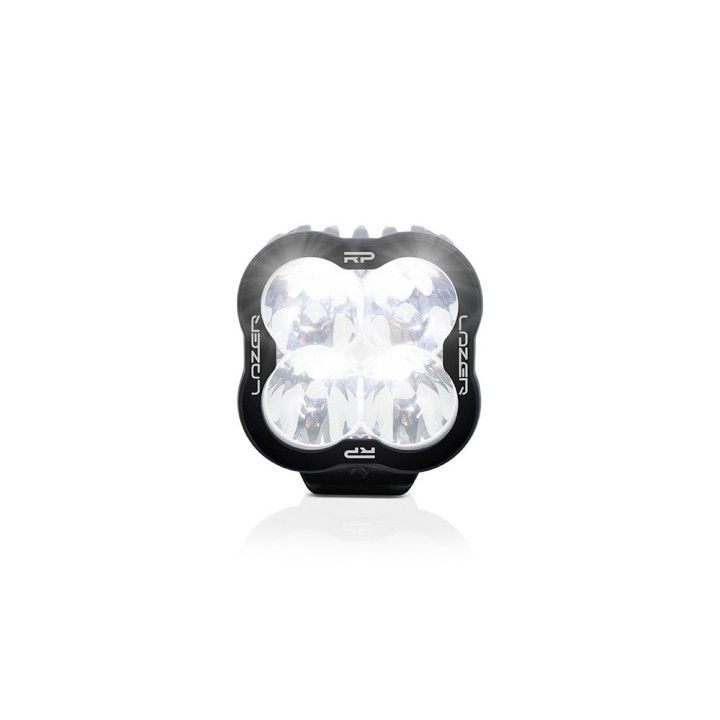

Work lamp LAZER RP HYPERSPOT
Work lamp LAZER RP HYPERSPOT. The manufacturer quotes luminous flux: 4,520 lm, range at 0.25 lx: 1049 m, power consumption: 45 W. A genuine LAZER product available from Szekla4x4.pl.
Work lamp LAZER RP HYPERSPOT
What counts at work is seeing the whole area around the machine, not a narrow cone in front of it.
The manufacturer quotes 4,520 lm of output. Ingress protection: IP68.
Luminous flux 4,520 lm | Range (0.25 lx) 1049 m | Ingress protection IP68 |

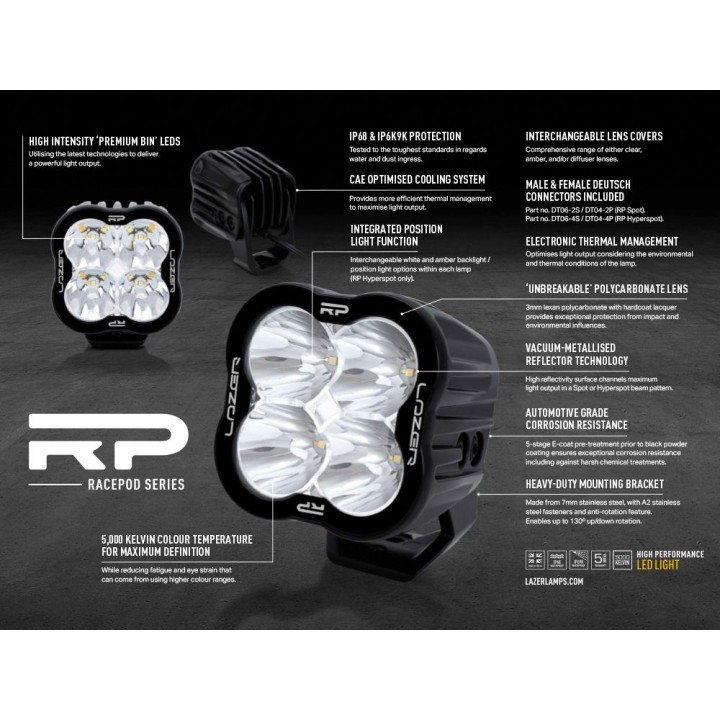

Key features
- Utilizing 4 high-intensity LEDs
- Vacuum-metallized ‘boost’ optics deliver Hyperspot beam pattern

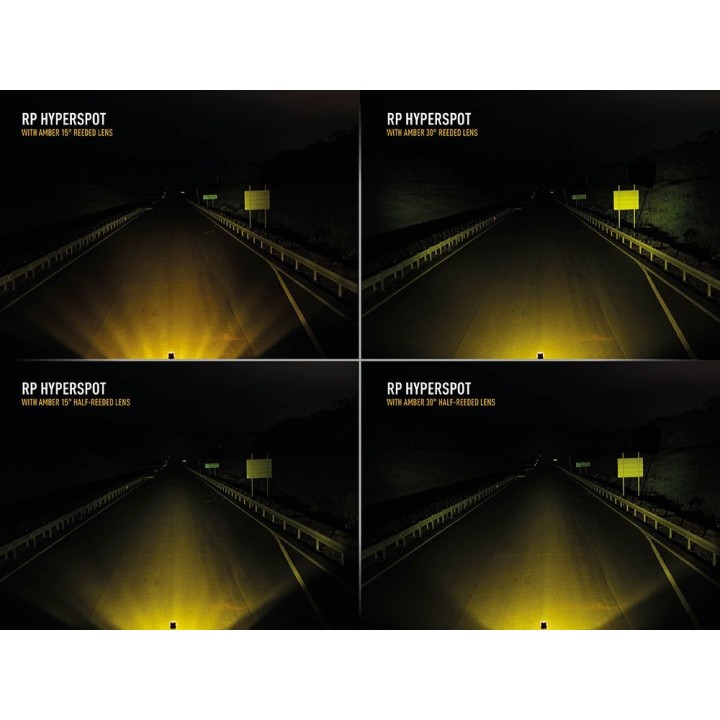

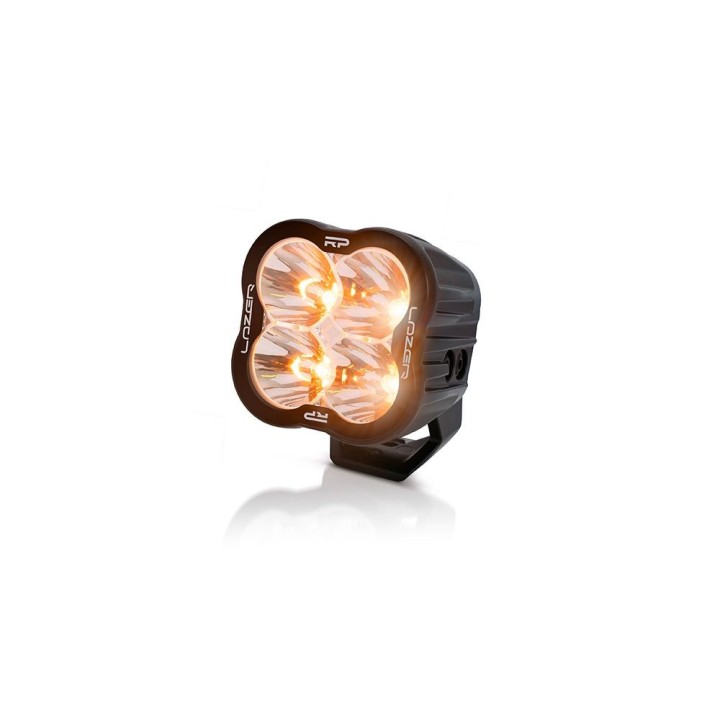

- Integrated white/amber backlight function
- CAE optimized cooling system with Electronic Thermal Management
- 5000 K colour temperature
- Comprehensive range of lens covers available

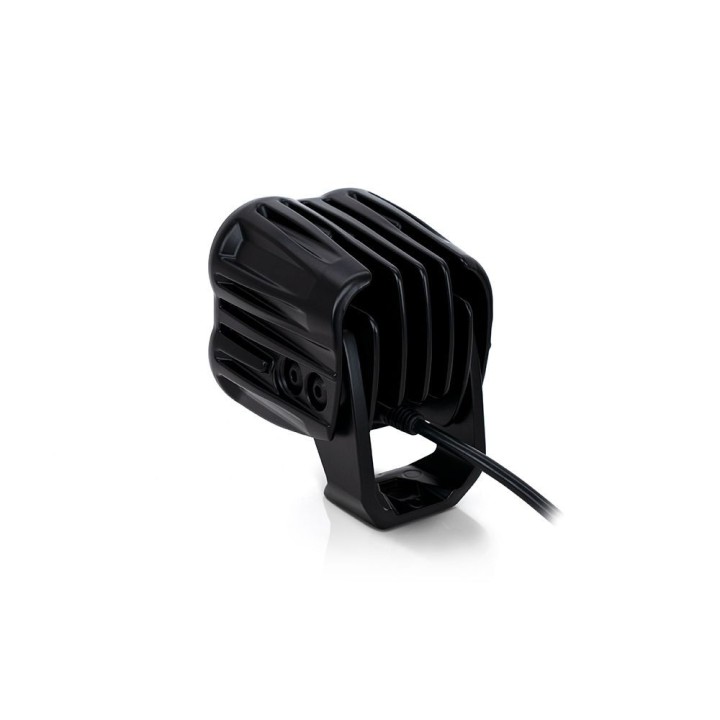

- Die-cast, heavy-duty mounting bracket
- ‘Unbreakable’ polycarbonate lens with hardcoat
- Marine grade corrosion resistance
- IP68 / IP69 K approved
- Over voltage protected
- Reverse polarity protected
- Includes male/female (4-pin) Deutsch connectors
- 5year warranty
- Made in the UK
What is in the box
- x1 RP Hyperspot LED Lamp
- x1 Lamp Mounting Bracket

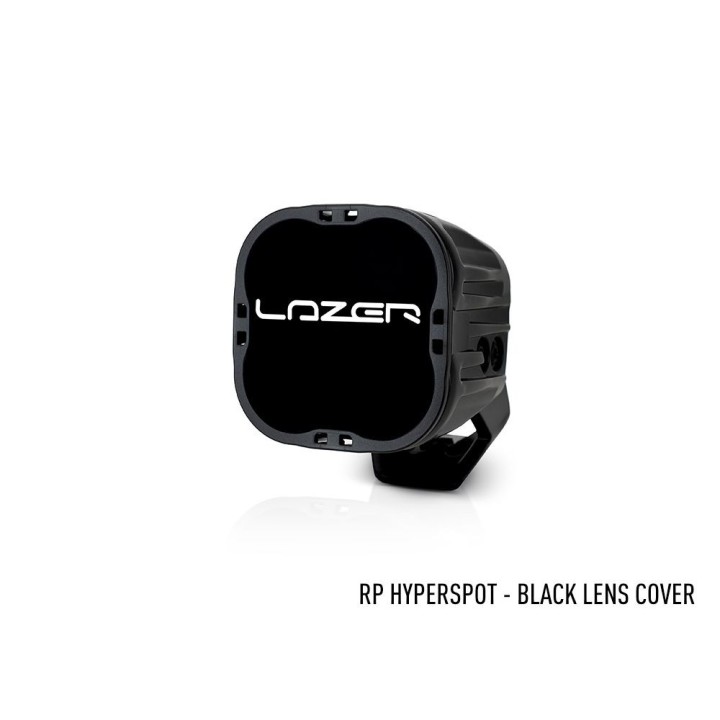

- x1 Black Lens Cover
- x1 Installation Instructions
Technical data
- Luminous flux: 4,520 lm
- Driver 'FOV' flux: 3,268 lm
- Colour temperature: 5000 K
- Number of LEDs: 4
- Power consumption: 45 W
- Current draw: 3.1 A
- Peak current draw: 4.8 A
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 1.1 kg
- Width: 107mm
- Depth: 108mm
- Height: 107mm

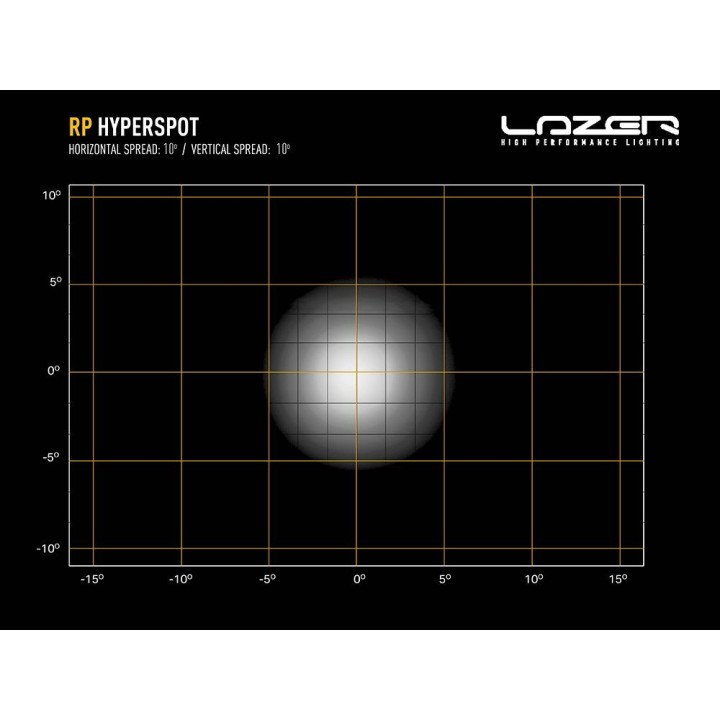

- Horizontal beam angle: 10°
- Vertical beam angle: 10°
- Connector: 4-Pin Deutsch DT (+28cm Cable)
- Ingress protection: IP68
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2

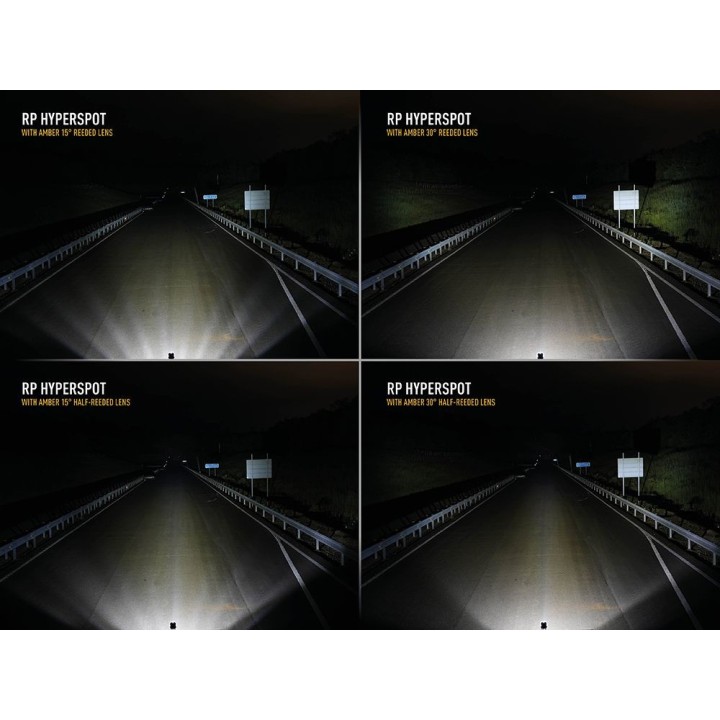

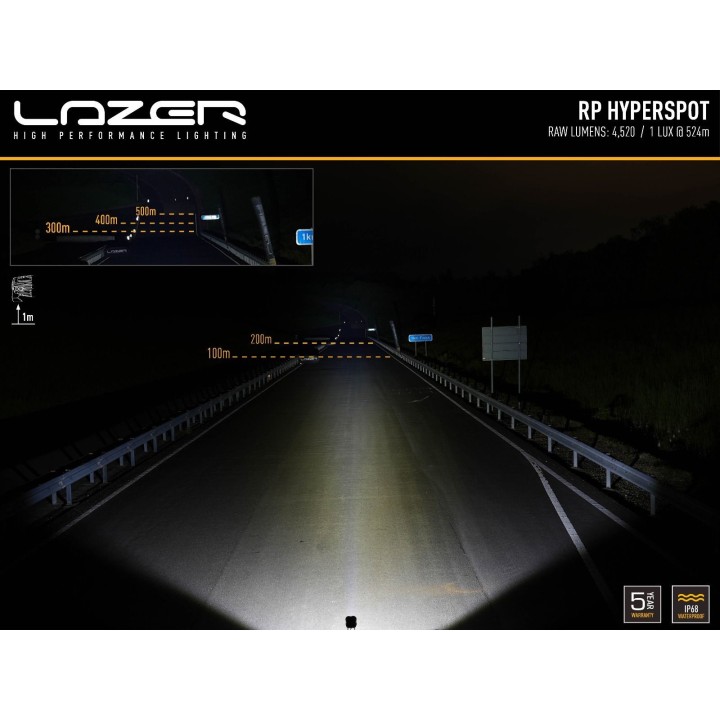

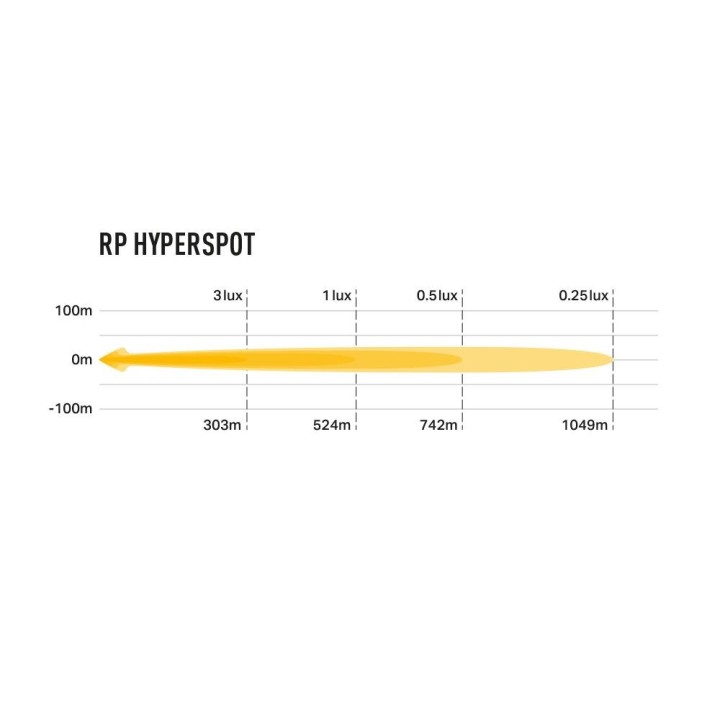

Beam range
| 0.25 lx | 1049 m |
| 0.5 lx | 742 m |
| 1 lx | 524 m |
| 3 lx | 303 m |
Who it is for
For working vehicles and machinery: loaders, tractors, municipal vehicles, bodies.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 4-Pin Deutsch DT (+28cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
Why it is worth it
- 4,520 lm of output and 1049 m of range on the 0.25 lx line
- IP68 ingress protection
- LAZER — designed and manufactured in the United Kingdom
Frequently asked questions
What is in the box?
The box contains: x1 RP Hyperspot LED Lamp, x1 Lamp Mounting Bracket, x1 Black Lens Cover, x1 Installation Instructions.
How far does it throw?
The manufacturer quotes 1049 m on the 0.25 lx line, 742 m at 0.5 lx and 524 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 45 W, i.e. 3.1 A at 14.4 V.
What are the dimensions?
Width 107mm, depth 108mm, height 107mm, weight 1.1 kg.
