LAZER High Performance LED Lighting
Indeks: LAZER-00U80-HD-B
LED lamps - small and built-in

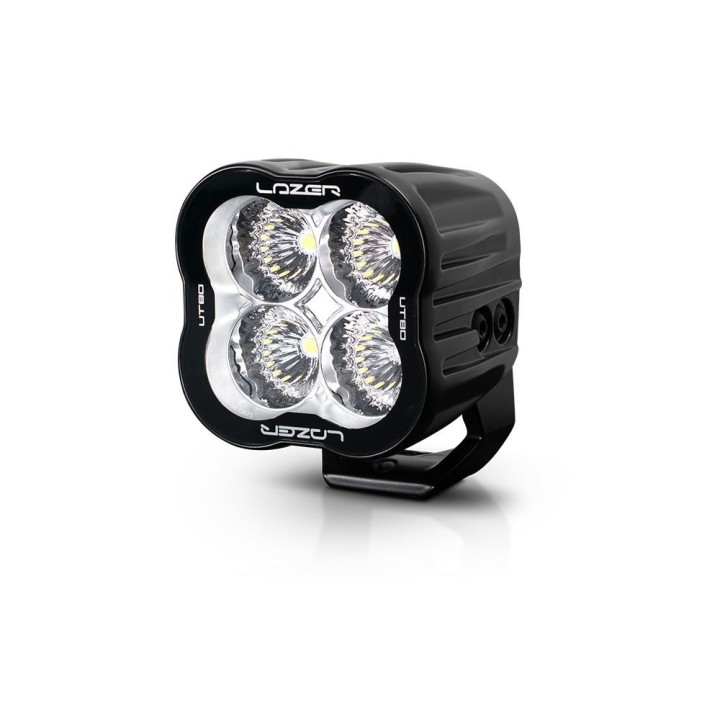

Lazer Utility-80 HD 80W LED Work Light 5000K
Heavy-duty LED work light for demanding off-road and worksite use. Utility-80 HD delivers 8,940 lm (7,420 effective) with a wide 80°/80° beam and 5000K colour temperature for clear, even illumination. Built for harsh conditions with IP68/IP69K protection, stainless 7mm bracket, Deutsch connectors and full electrical safeguards.
The Utility-80 HD is a compact, heavy-duty LED work light designed for harsh environments where reliable, wide-area illumination matters most. Using 4x high-density 20W LEDs (80W total), it produces 8,940 lumens (7,420 effective) and spreads light evenly across an 80°/80° field of view. A 5000K colour temperature supports clear definition while helping reduce fatigue during prolonged night work. For added flexibility, a Variable Brightness option is available.

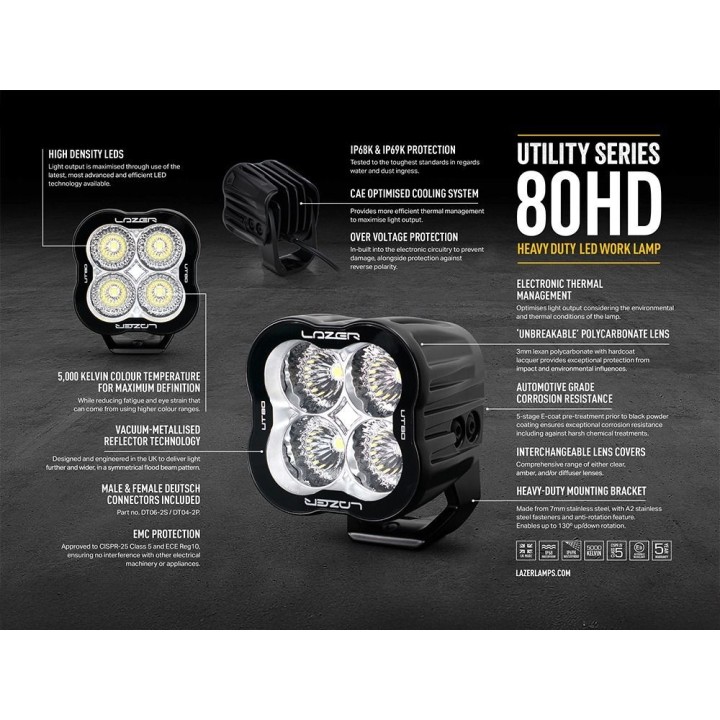

Key features
- ECE approved LED work light for professional applications.
- High output: 8,940 lm total (7,420 effective) from 4x 20W LEDs.
- Wide, usable beam pattern: 80° horizontal / 80° vertical.
- 5000K colour temperature for clear visibility during night work.
- CAE optimised cooling system with Electronic Thermal Management.
- Vacuum-metallised optics for efficient light utilisation.

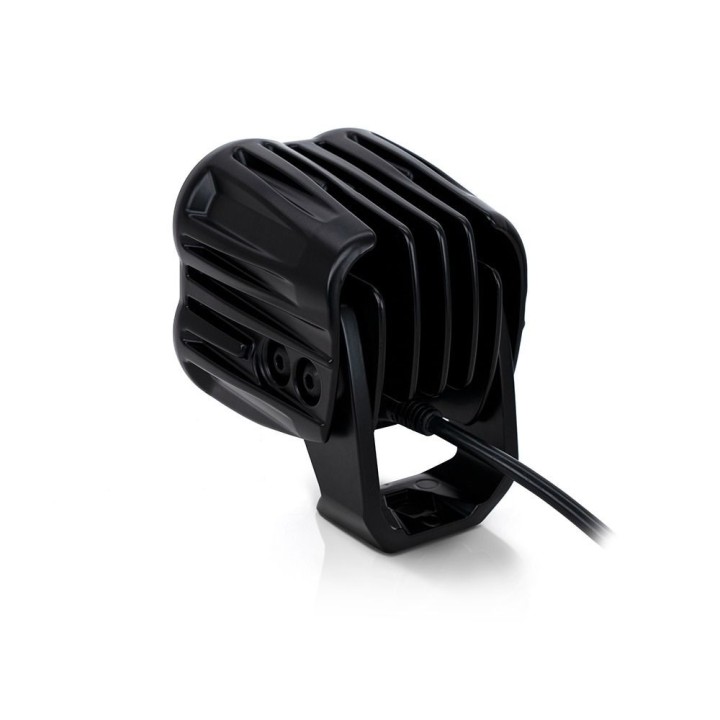

- Heavy-duty die-cast mount with 7mm stainless steel bracket.
- ‘Unbreakable’ polycarbonate lens with hardcoat and automotive-grade corrosion resistance.

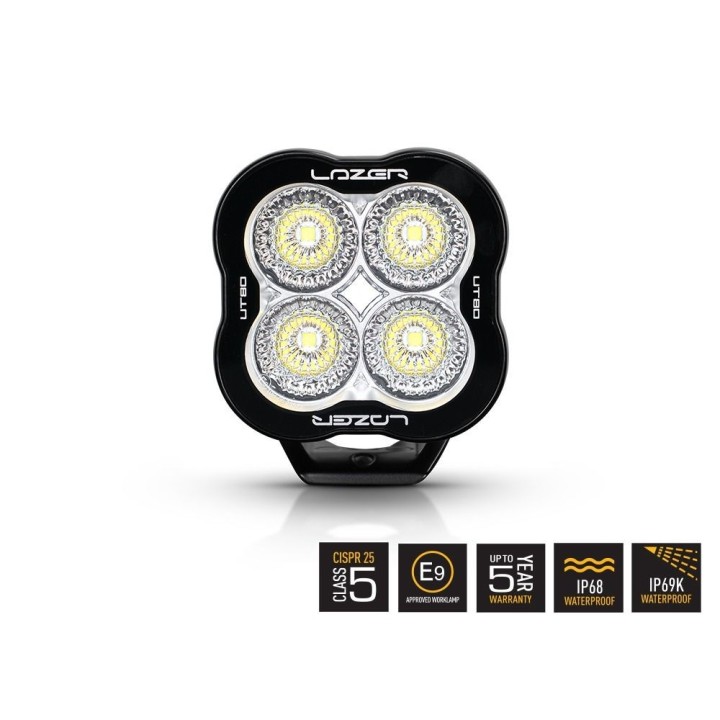

- IP68 / IP69K protection for demanding conditions.
- Over voltage and reverse polarity protection.
- Includes male/female Deutsch connectors; 2-Pin/4-Pin Deutsch DT (+28cm cable).
- Comprehensive range of lens covers available.
- Made in the UK; 5 year warranty for Automotive & Commercial Fleet use (otherwise 2 years).
Technical data
- Product code: #00U80-HD
- LEDs: 4x high-density 20W
- Power consumption: 80 W
- Total luminous flux: 8,940 lm
- Effective lumens: 7,420 lm
- Colour temperature: 5000K
- Voltage range (DC): 10–32 V
- Current draw (14.4V): 5.6 A
- Connector: 2-Pin/4-Pin Deutsch DT (+28 cm cable)

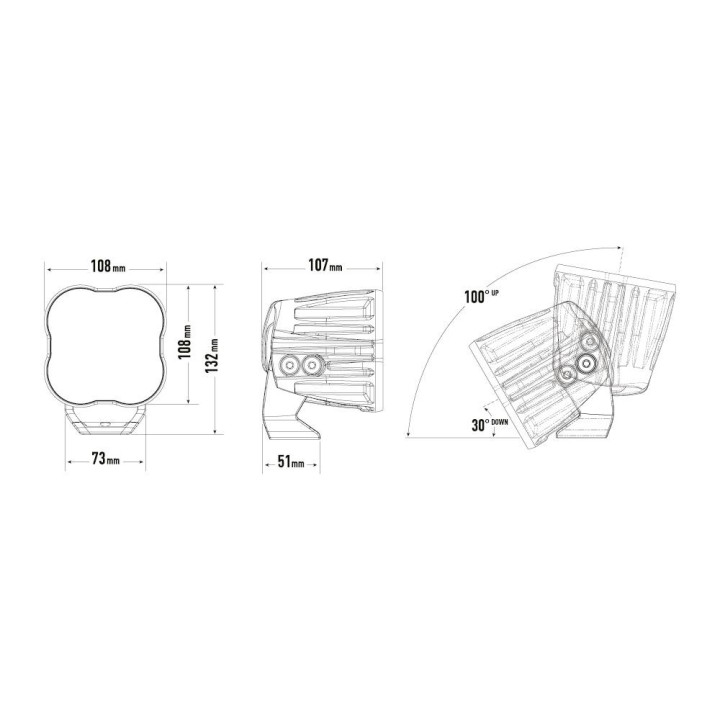

- Dimensions: 108 mm (W) x 108 mm (H) x 107 mm (D)
- Weight: 1.1 kg
- LED life: 50,000 hours
- Beam angle (H/V): 80° / 80°

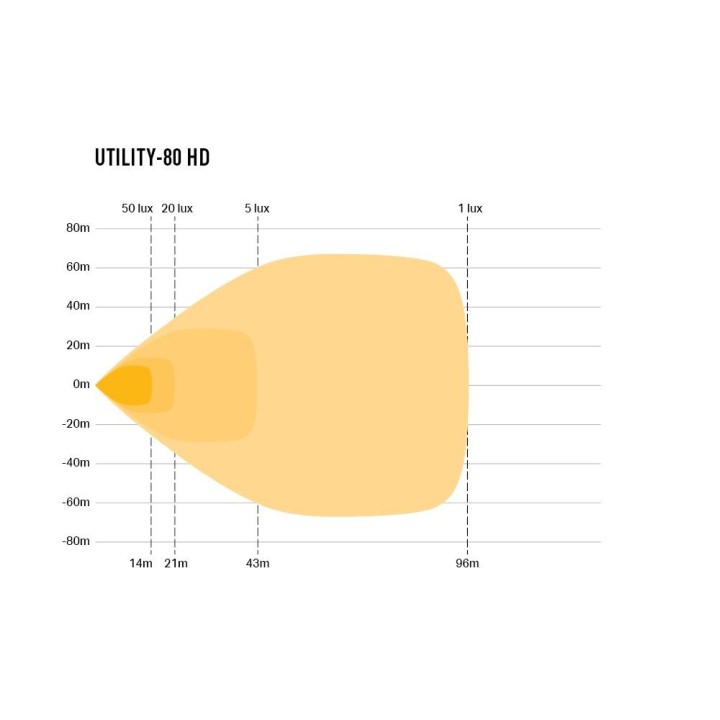

- Photometric data: 1 lux 96 m; 5 lux 43 m; 20 lux 21 m; 50 lux 14 m
- IP rating: IP68 / IP69K
- EMC certification: ECE R10
- EMC protection: CISPR-25 Class 5 (Variable version currently Class 3)
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Operating temperature: -40°C to +90°C
- Vibration: (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Off-road and 4x4 use
In off-road, 4x4 and overlanding builds, the Utility-80 HD works as a robust scene/work light for camp setup, recovery tasks, vehicle-side servicing and controlled manoeuvring after dark. The wide 80°/80° beam helps illuminate a large working area evenly, while the IP68/IP69K rating and heavy-duty mounting make it suitable for harsh, wet and dusty environments.
