Lazer Glide 18 - LED light bar

You can tell a good auxiliary light by one thing: after dark you stop slowing down "just in case".

The manufacturer quotes 11,500 lm of output, 517mm wide, 0.68 kg. ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.

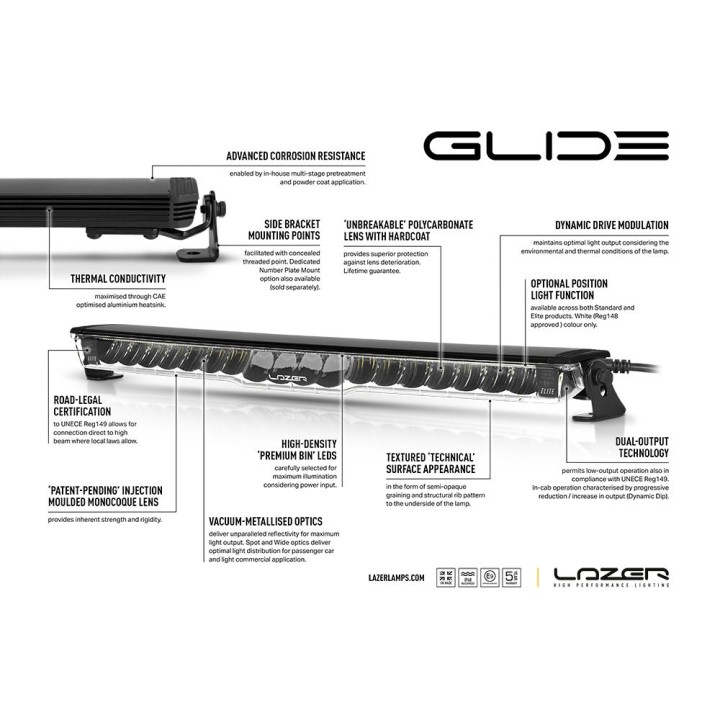

Key features

• ‘Formed’ light bar featuring injection-moulded monocoque lens construction
• Curved and ultra low-profile lamp design facilitates OE quality vehicle installation
• Patent-pending lamp design
• Incorporation of the latest high-intensity ‘premium bin’ LEDs
• Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution
• Dynamic Dip function for transitioning between high and low output modes
• UNECE approved Reg 149 (Double E-Mark, Class B Driving Light) for on-road high beam function – Low Output/E-Mark mode only
• Adoption of black PCB’s for a contemporary and stealth appearance
• ‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)
• Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition

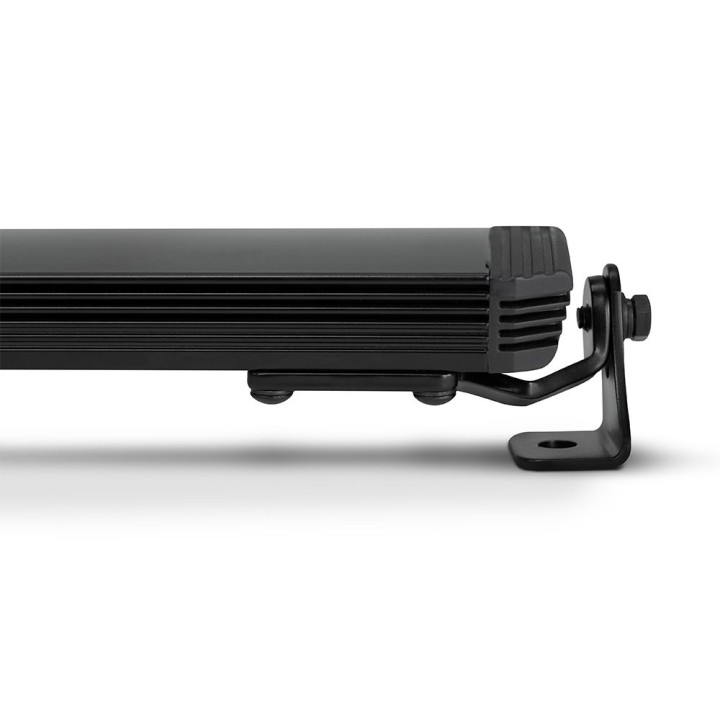

• Supplied with side mounting kit – Anti-theft side mounting kit also available (sold seperately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• Over voltage protected
• Reverse polarity protected
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty

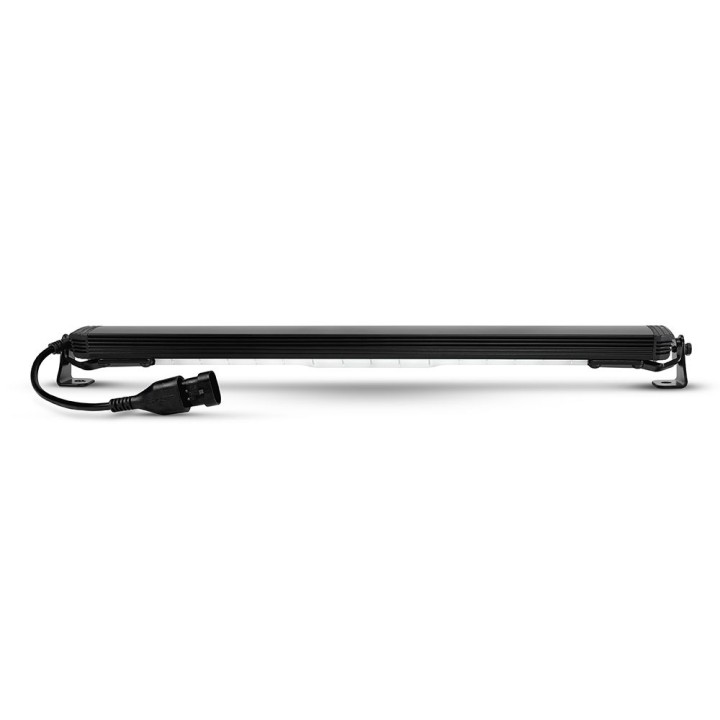

• 25cm lamp cable with supplied male/female 2-pin Superseal connectors

What is in the box

• Glide LED Lightbar
• Side Mounting Kit (1131 K)
• Installation Instructions

Technical data

• Luminous flux: 11,500 lm (full power mode) / 4,025 lm (approved mode)
• Driver 'FOV' flux: 6,958 lm (full power mode) / 2,435 lm (approved mode)
• Colour temperature: 5000 K
• Number of LEDs: 48
• Power consumption: 120 W (full power mode) / 42 W (approved mode)
• Current draw: 8.3 A (full power mode) / 2.3 A (approved mode)
• Peak current draw: 9.6 A (full power mode) / 2.6 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 0.68 kg

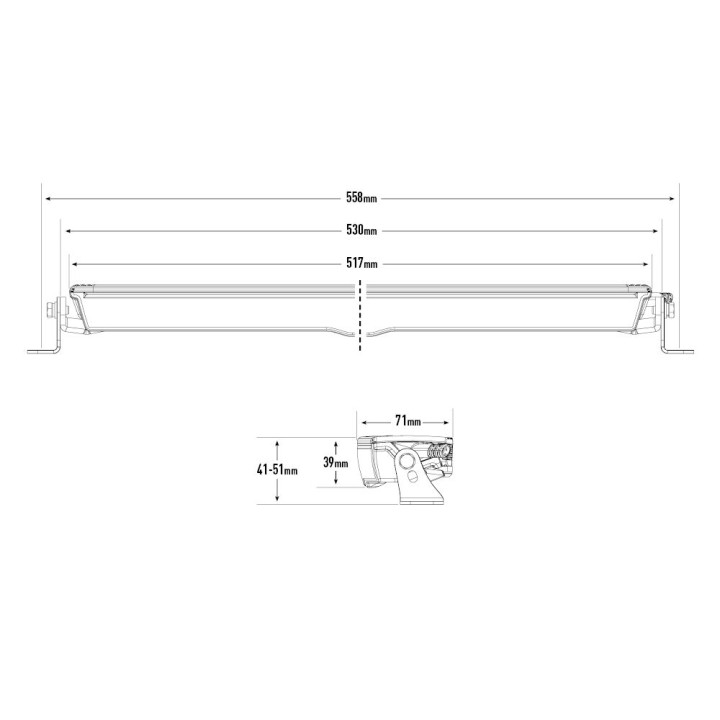

• Width: 517mm
• Depth: 71mm
• Height: 39mm

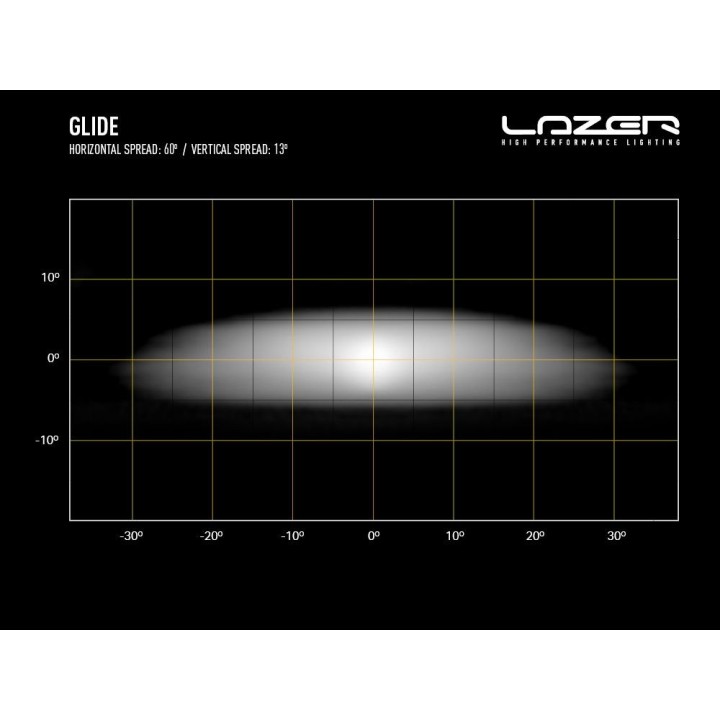

• Beam angle (horizontal / vertical): 60 / 13°
• Horizontal beam angle: 60°
• Vertical beam angle: 13°
• Connector: 2-Pin / 3-Pin Superseal (+20cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only)
• Position light: ECE R148
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For roof and bar installs where a low profile counts.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 2-Pin / 3-Pin Superseal (+20cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 11,500 lm of output and 1095 m of range on the 0.25 lx line
• ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: Glide LED Lightbar, Side Mounting Kit (1131K), Installation Instructions.

How far does it throw?

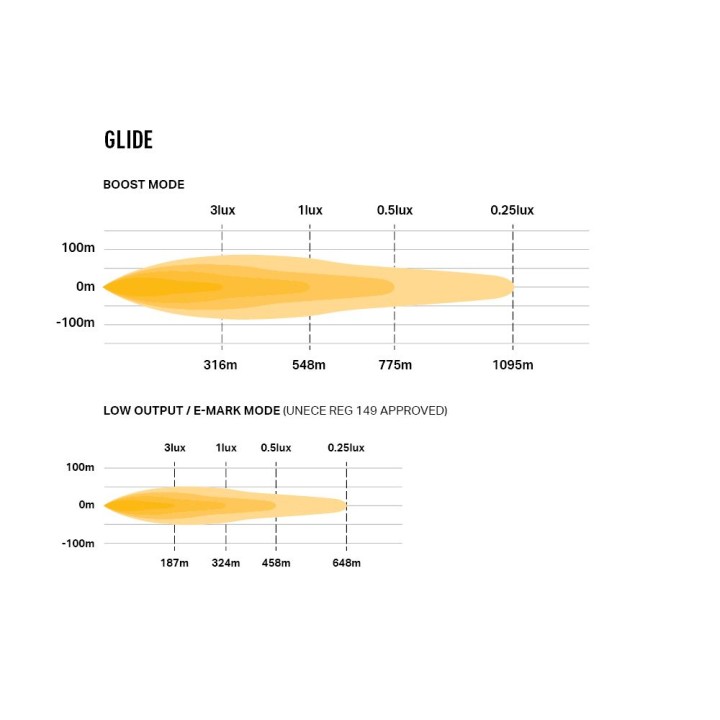

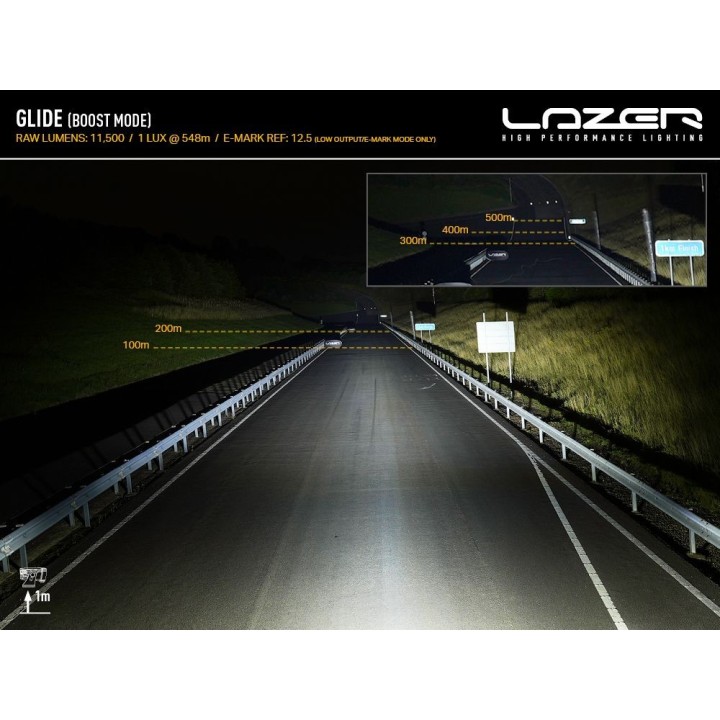

The manufacturer quotes 1095 m on the 0.25 lx line, 775 m at 0.5 lx and 548 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 120 W, i.e. 8.3 A at 14.4 V.
