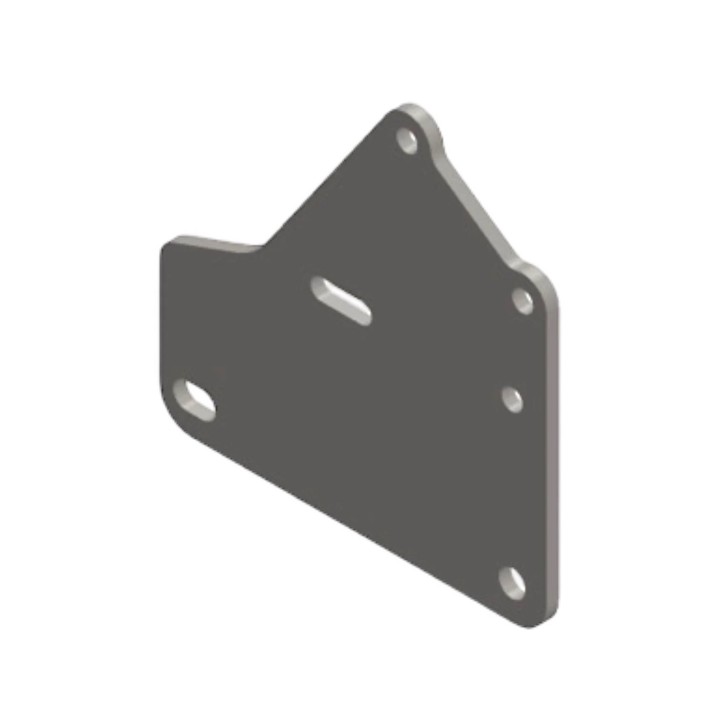

APEX CRS JLU Roll Cage and Universal Vertical Mounting Bracket
An APEX bracket for mounting the Compact Reel System reel on a Jeep Wrangler JLU cage. The manufacturer notes it works with a hardtop only - with the factory soft top the bracket does not fit. The same part can be used universally as a vertical mount for the CRS reel elsewhere.
APEX CRS JLU Roll Cage and Universal Vertical Mounting Bracket

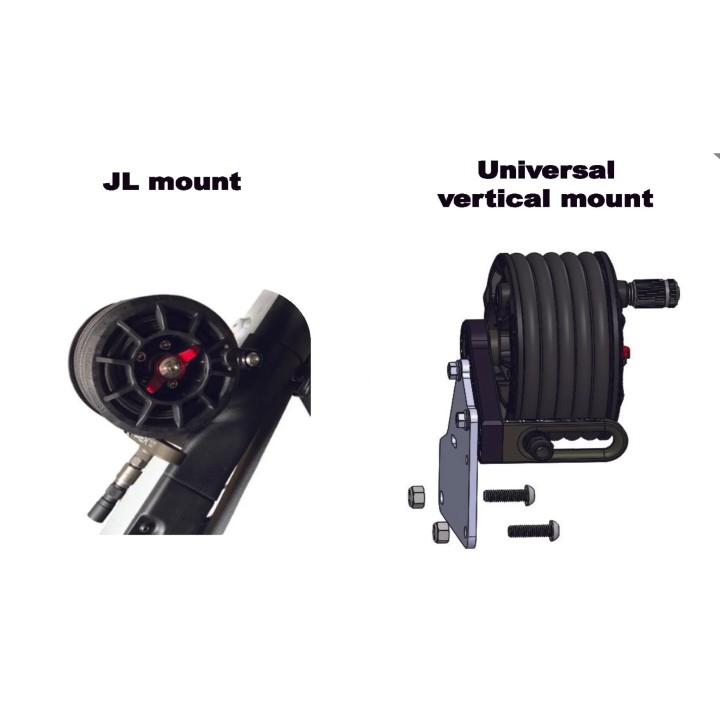

In a JLU the CRS reel belongs in one particular place: on the cage, where it takes no load space and stays within reach.
This bracket makes that a ready-made installation. Fitting it to the roll cage in a JL or JLU does mean working on the factory trim panel, though, and mounting it vertically elsewhere means drilling two holes; details below.
VEHICLE Jeep Wrangler JLU | CONDITION Hardtop only | SECOND USE Universal vertical mount |
Key benefits
- a dedicated mounting for the CRS reel on a Jeep JLU cage
- the same bracket also works as a universal vertical mount elsewhere
- a bracket made for the vehicle instead of fabricating your own
Technical data
- Manufacturer part number: X02-06-003
- Vehicle: Jeep Wrangler JLU
- Condition: hardtop only - it does not fit with the factory soft top
- Second use: universal vertical mount for the CRS reel
- Important: the Compact Reel System reel is sold separately
Who it is for
For Jeep Wrangler JLU owners with a hardtop fitting the CRS reel on the cage, and for anyone looking for a vertical mount in another vehicle.
Installation and notes
The bracket works with a hardtop only. The manufacturer does not list it for the factory soft top. The Compact Reel System reel and chucks are sold separately. The manufacturer provides installation instructions.
What the manufacturer says about fitting
The instructions linked from the manufacturer page give two things the page itself does not.
Mounting to the roll cage in a JL or JLU requires cutting a section of the factory trim panel. The manufacturer walks through it: measure, cut with a sharp razor blade along a straight edge on both sides, lightly and several times, then bend down 45 degrees at the halfway point and finish the cut.

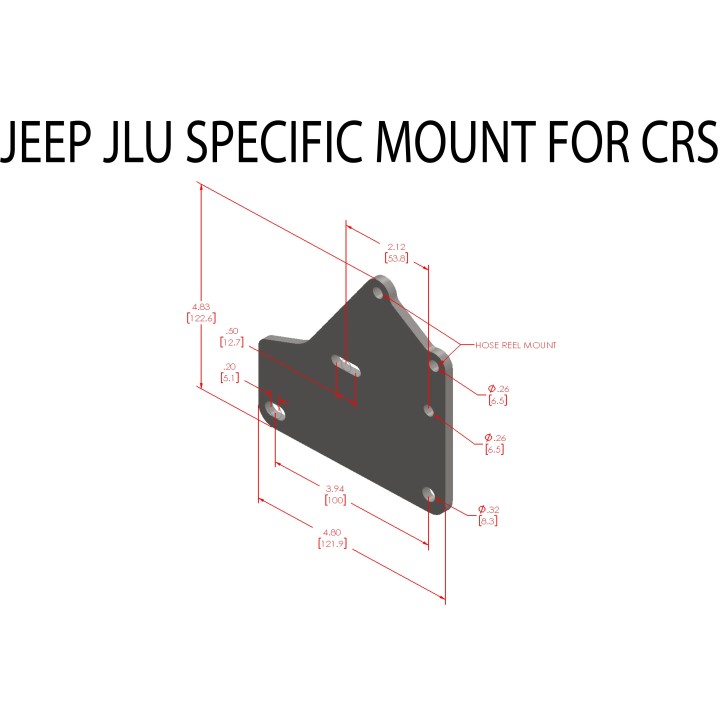

Mounting it vertically anywhere else requires drilling two 9 mm (5/16 inch) holes. The bolt hole span is 3.94 inches, or 100 mm — the one figure you need to plan an installation in something other than a Jeep.
Torque and fasteners: four M6x1.0 screws 16 mm long at 5 ft-lbs and two M8x1.25 screws 25 mm long at 10 ft-lbs, fitted with a 5 mm hex key.
Frequently asked questions
Will it work with a soft top?
No. The manufacturer states plainly that the bracket works with a hardtop only.
Is the reel included?
No. This is the bracket only - the CRS reel is sold separately.
Can I use it in another vehicle?
Yes. The manufacturer also describes it as a universal vertical mount for the CRS reel.
Why it is worth it
- a ready bracket instead of a fabricated tab
- a genuine APEX Designs and Performance Products part
Not sure which bracket suits your vehicle? Get in touch and we will check together.
