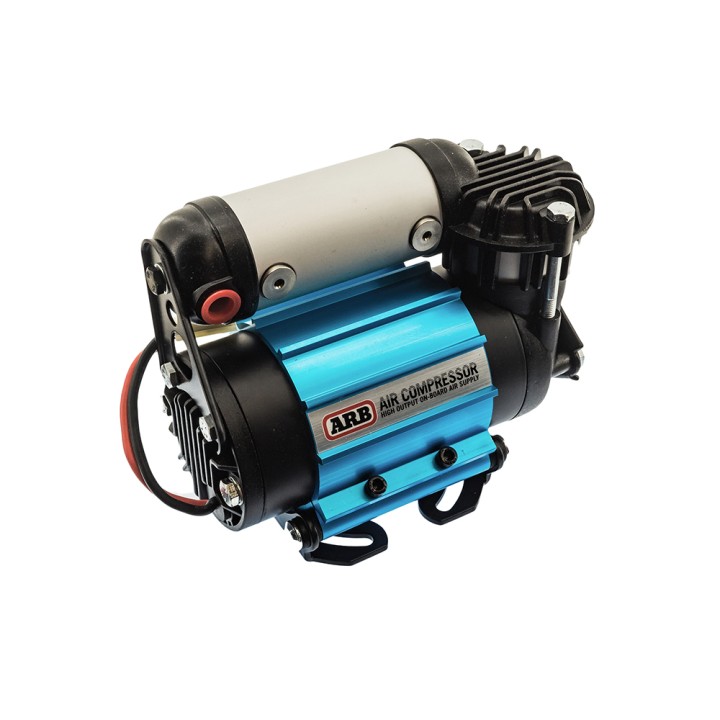

High-performance ARB compressor 24V with electronic protection

High-performance 24V compressor allowing to power one or two differential locks. The compressor also enables connecting a hose for inflating tires and other pneumatic accessories. Additionally, the motor is equipped with electronic protection against overheating.

ARB compressor 24V supplied with a cabin-mounted switch for easy operation. Comes with a mounting bracket, air filter, pressure switch, and electrical harnesses ready to connect two differential locks.

Dimensions (height x length x width): 145 x 190 x 98 [mm]
Weight: 4.5 kg

Power supply: 24 V

Current draw:
- no load: 7 A
- under load: 12.5 A

Performance:
- no load: 75.1 l/min.
- under load (at 200kPa): 61.6 l/min.

Compressor pressure switch operates within the following ranges:

- activation: 4.82 bar
- deactivation: 6.89 bar

Efficiency: 50%

We also recommend checking out our compressor pressure gauge available in our offer.
