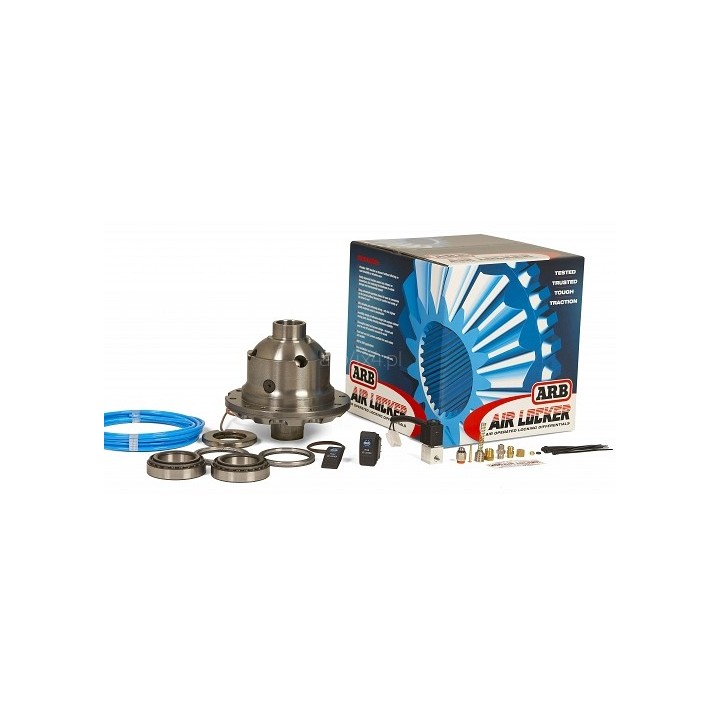

ARB Air Locker RD163 - Ford F250, F350 Pickup / Toyota FJ40s (South American production)

The ARB Air Locker RD163 is an air operated locking differential for the Dana 60,30 SPL,4.10 & DN axle. An Air Locker is matched to the axle, not to the car model, so axle type, axle shaft spline count and ring & pinion ratio decide which model fits. The list below comes straight from the ARB application chart.

Key features

• ARB part number: RD163
• Axle: Dana 60,30 SPL,4.10 & DN
• Axle shaft splines: 30
• Ratio range: 4.30 & DN
• Supersedes: RD22

Fitment per the ARB application chart

• Chevrolet Sportvan – rear axle (4.30 & DN)
• Chrysler J20, Medium Truck, J30, Heavy Truck – rear axle (4.10 & DN)
• Dodge 100, 150, 200, 250, A, B, D, W – front axle (4.30 & DN ll RD)
• Dodge 100, 150, 200, 250, A, B, D, W, 1983-93 – rear axle (Dana)
• Dodge 100, 150, 200, 250, A, B, D, W – rear axle (4.30 & DN ll RD)
• Dodge 300, 350, 400, B, C, M, W – front axle (4.30 & DN ll RD)
• Dodge RAM 2500, 3500 – front axle (4.30 & DN ll RD)
• Ford F250 Pickup, E250 Van (2WD) – rear axle (4.30 & DN)
• Ford F350 Pickup, E350 Van (2WD) – rear axle (4.30 & DN)
• Toyota FJ40s made in South America – rear axle (4.30 & DN)

Specifications

• ARB part number: RD163

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

How do I know which locker fits my vehicle?

By axle type and axle shaft spline count, and for some axles also by the ring and pinion ratio. The model year alone is not enough – the same model was built with different axles.

Do I need an air compressor?

Yes. An Air Locker runs on compressed air, so a compressor and a switch kit are required.

Not sure which axle your vehicle has? Get in touch – we will check the ARB chart by spline count and ratio, and we can fit the locker for you.
