Hot Rods
Indeks: HR 8651
Silnik i osprzęt do quadów

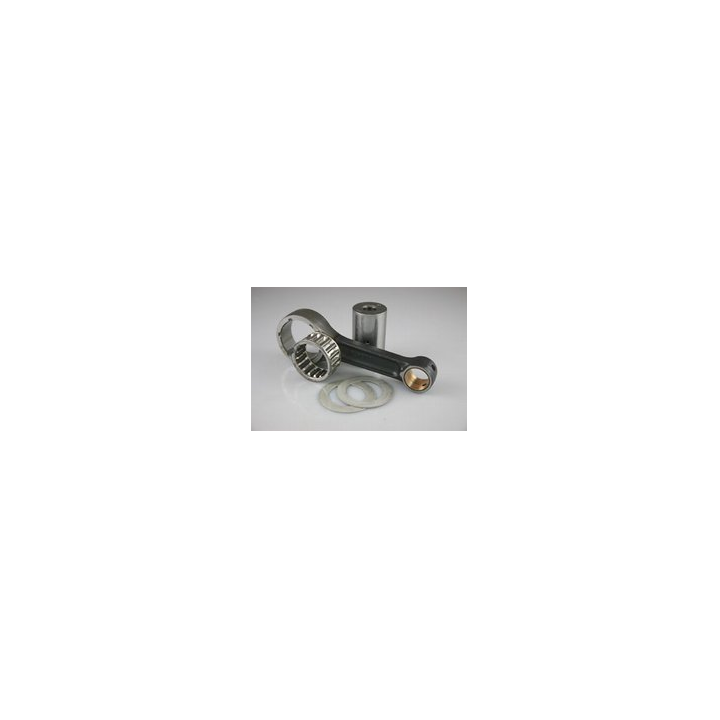

HOT RODS KORBOWÓD RAPTOR 700 (06-14), GRIZZLY 700 (06-13)
Ten produkt nie ma jeszcze żadnych recenzji — napisz pierwszą
599,00 zł
Brutto
XDD
Part Number: 8651
Distributor Part Number(s):
Western Powersports : 421-8651
Parts Unlimited : 0923-0197
Marshall : Dec-06
OE Part Number(s):
1S3-11651-00-00
For Models:
2007 - 2013 Yamaha Grizzly 700, 2006 - 2012 Yamaha RAPTOR 700, 2008 - 2012 Yamaha RHINO 700
Big End Bearing (mm):
40x50x21.73
Big End Bore (mm):
50.00
Big End Width (mm):
21.95
Center To Center (mm):
135.00
Pin Diameter (mm):
34.00
Pin Length (mm):
63.60
Small End Bearing (mm):
Bushing
Small End Bore (mm):
23.00
Small End Width (mm):
21.95
Washer Thickness (mm):
Not used
